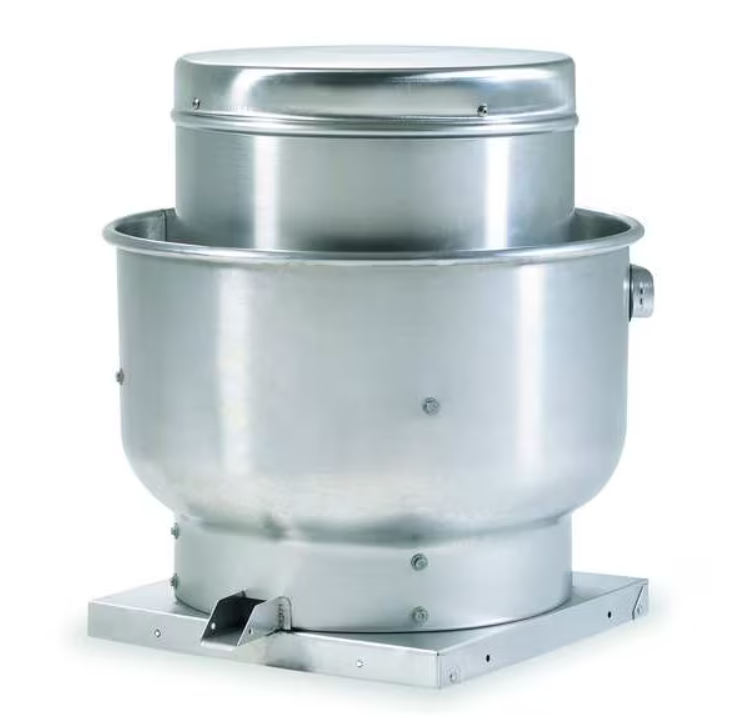

Blower Bundle 6' Fume Hood Centrifugal Upblast Roof Exhaust Fan: Direct Drive, Includes Drive Pack, 11" Wheel, 1,468 cfm, ODP

*Please inquire about lead times on this item*
Includes Fumehood Blower, Curb, and Speed Control.

Dimensions
Base Size - Roof Ventilators 19 in x 19 in
Wheel Dia. 11 in
Shaft Dia. Wheel End 1/2 in
Dimension D 17 3/8 in
Base Height 1.8 in
Overall Dia. 24 7/8 in
Dimension A 19 in
Base Square Size - Roof Ventilators 19" x 19"
Dimension B 24 7/8 in
Base Width 19 in
Dimension C 28 1/4 in
Overall Height 30 in
Base Length 19 in
Overall Width 24 7/8 in
Damper Size 12 x 12 in
Housing Length 24.9 in
Overall Diameter 24 7/8 in
Propeller Shaft Diameter 1/2 in
Cutout Size 14.5 in L x 14.5 in W
Housing Width 24.9 in
Overall Depth 22 3/4 in
Cutout Length 14.5 in
Wheel Diameter 11 in
Details
Promotion Restriction Not eligible for promotion
Item - Roof Ventilators Upblast Ventilator
Drive Package With Motor Included Yes
Duty Rating - Roof Ventilators Standard
Drive Type - Roof Ventilators Direct Drive
Mounting Location - Roof Ventilators Roof
Number of Speeds 1
Voltage - Roof Ventilators 115V AC
Motor HP - Roof Ventilators 1/4 hp
CFM @ 0.000-In. SP 1260
Max. Inlet Temp. 300 Degrees F
CFM @ 0.375-In. SP 1100
Sones @ 0.250-In. SP @ 5 Ft. 13.4
CFM @ 0.750-In. SP 918
Includes NEMA 1 Junction Box
Sones @ 0.125-In. SP @ 5 Ft. 13.8

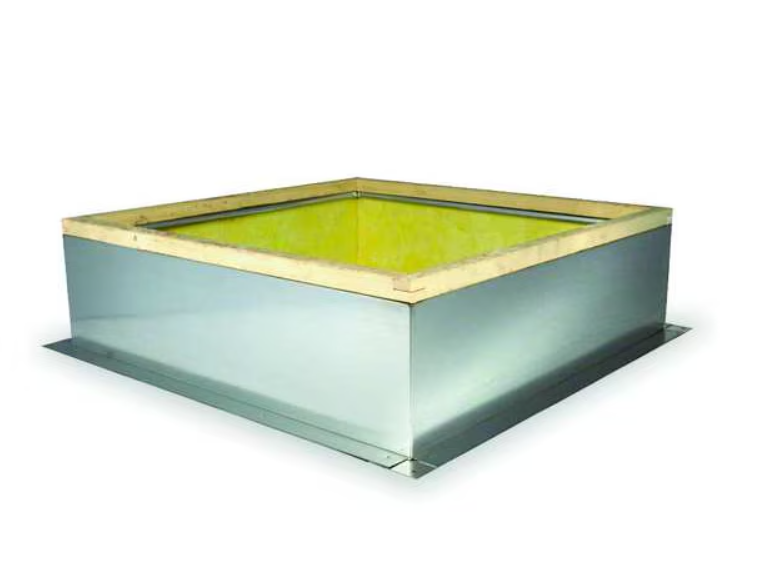

Adj. 6 3/8"H Roof Curb Stock No. 4c453
Requires Roof Curb for New Installation
Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61
Max. BHP 0.25
CFM @ 1.000-In. SP 759

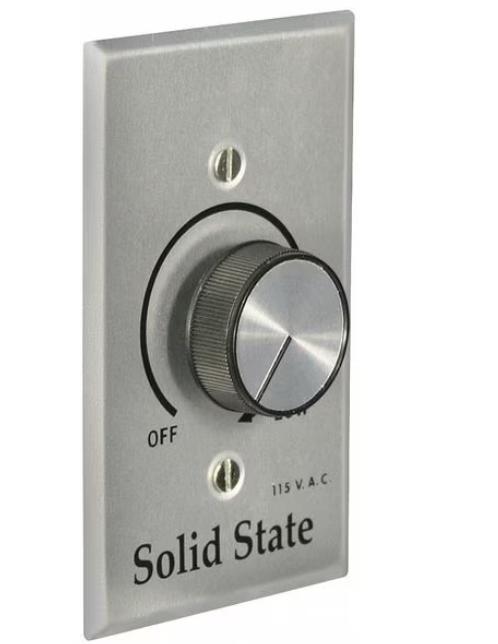

Speed Control 48C172
Mounting Location Roof
Assembled/Unassembled Assembled
Recommended 8 In. Fixed Curb Item No. 4HX38
Sones @ 0.500-In. SP @ 5 Ft. 12.3
Max. Operating Amps 5.0
Recommended 12 In. Fixed Curb Item No. 2RB75
Drive Package Included Yes
Speed Controllable Yes
Housing Material Aluminum
CFM @ 0.125-In. SP 1209
Drive Type Direct Drive
Standards AMCA Sound and Air, UL/cUL 762
CFM @ 0.250-In. SP 1156
Hz 60
Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54
Adj. 12 3/8"H Roof Curb Stock No. 2ZV82
Wheel Material Aluminum
CFM @ 0.625-In. SP 981
Motor Voltage 115
Motor HP 1/4
Phase 1
CFM @ 0.500-In. SP 1041
RPM 1725
Item Centrifugal Upblast Roof Exhaust Fan
CFM @ 0.875-In. SP 846
Wheel Type Backward Inclined
Application Industrial and Commercial Buildings, Restaurants, Schools
Features Nonoverloading Centrifugal Wheel Design
Maximum Fan Speed 1,725 RPM
Includes Motor Yes
Electrical Connection Power Cord
Maximum Ambient Temperature 300 Degrees F
Includes Drive Package Yes
For High-Static Pressure Applications No
Exhaust Airflow @ 0.125 in SP 1,209 cfm
High-Efficiency Motor No
Spark Resistant Construction Type A
Motor Enclosure Open Dripproof
For Air Type Kitchen Air
Safety Features Fully Rolled Windband
Frequency 60 Hz
Current 3.6 A
Motor Speed 1,725 RPM
Assembly Assembled
Exhaust Airflow @ 0.500 in SP 1,041 cfm
Maximum Static Pressure 1 1/4 in wc
Housing Material Fabrication Spun
Resistance Properties Spark Resistant
Motor Horsepower 1/4 hp
Maximum Inlet Air Temperature 300 Degrees F
Sound Level 14.2 sones @ 0.000 in SP and 5 ft, 13.8 sones @ 0.125 in SP and 5 ft, 13.4 sones @ 0.250 in SP and 5 ft, 12.9 sones @ 0.375 in SP and 5 ft, 12.3 sones @ 0.500 in SP and 5 ft, 11.7 sones @ 0.625 in SP and 5 ft, 11.5 sones @ 0.750 in SP and 5 ft, 11.2 sones @ 0.875 in SP and 5 ft, 10.8 sones @ 1.000 in SP and 5 ft, 10.6 sones @ 1.250 in SP and 5 ft
Base Shape Square
Exhaust Airflow @ 0.250 in SP 1,156 cfm
Exhaust Airflow @ 0.375 in SP 1,100 cfm
Airflow @ 0.000 in SP 1,260 cfm
Mount Type Roof Curb
Compatible Speed Control 48C172
Nameplate Voltage 115V AC
Mounting Orientation Horizontal, Vertical
Brake Horsepower 1/4 hp
Motor Location Out of Airstream
Exhaust Airflow @ 0.000 in SP 1,260 cfm
