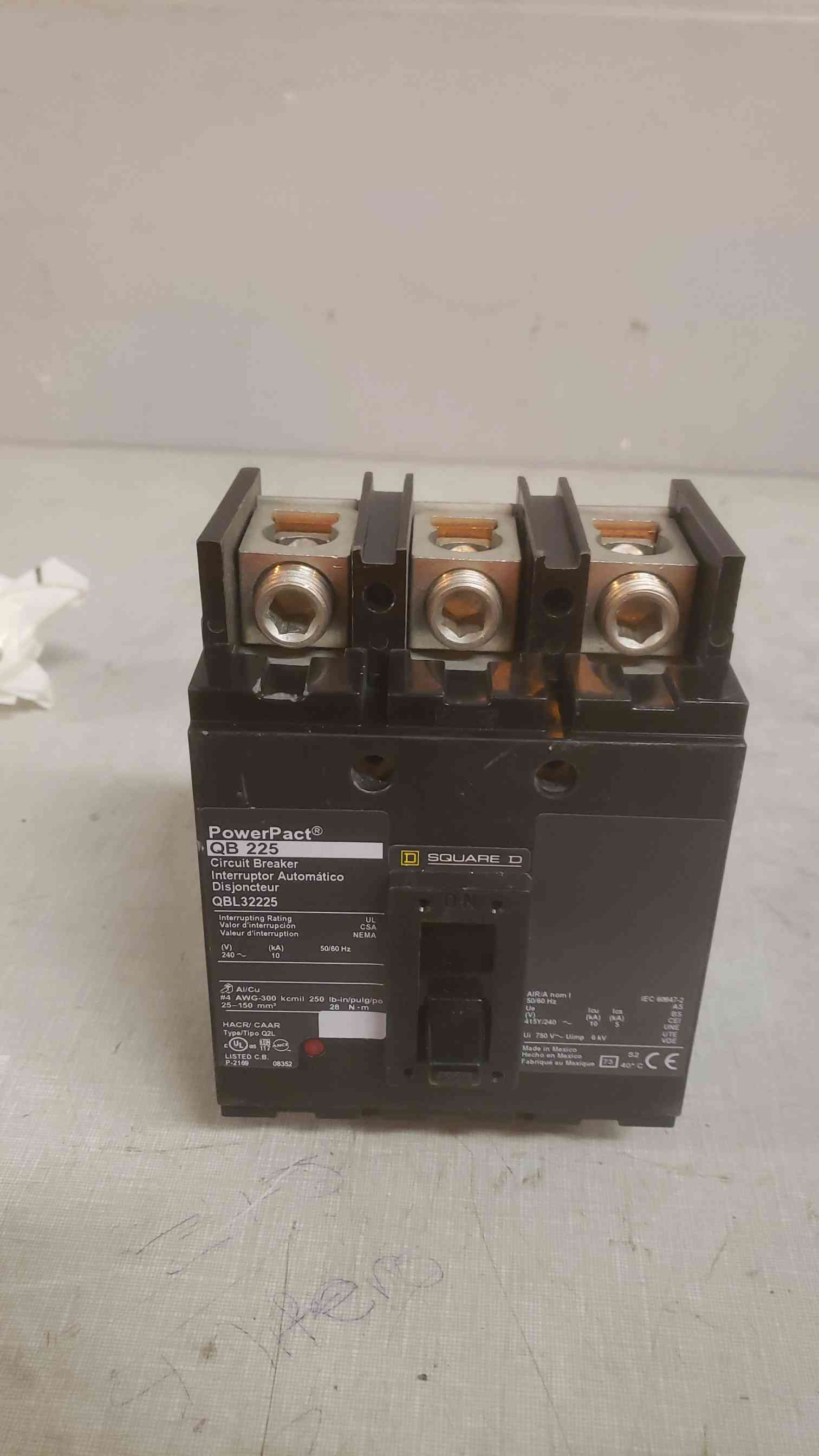

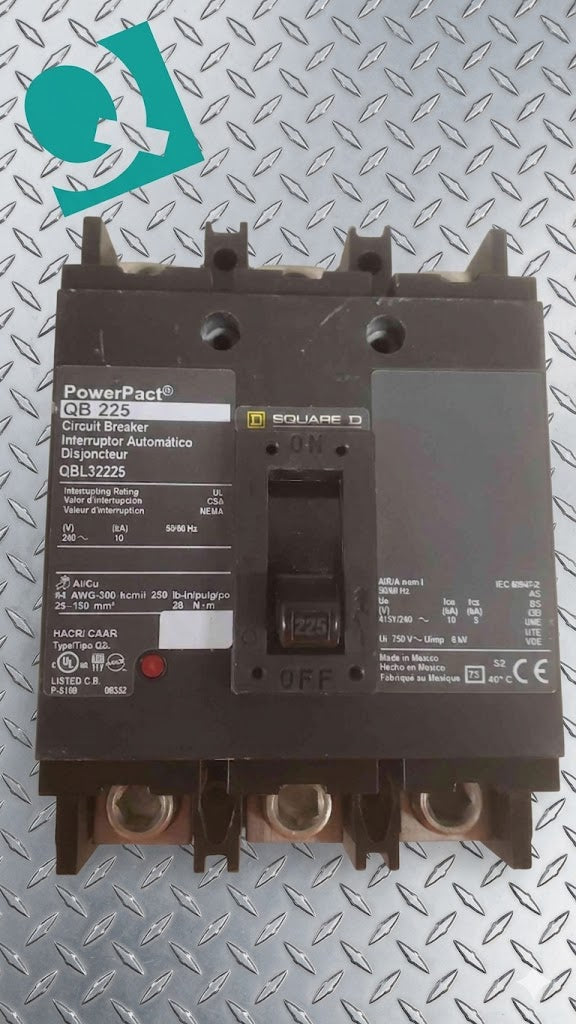

Square D 225A POWERPACT Circuit Breaker QBL32225 (109351)

Model Number: QBL 32225
Type: Circuit Breaker / Interruptor Automático / Disjoncteur
Voltage Rating (V): 240
Interrupting Rating (kA):
UL/CSA: 10 kA
NEMA: 10 kA
Frequency: 50/60 Hz
Wire/Cable Compatibility:
Al/Cu (Aluminum/Copper)
AWG/kcmil: #4 - 300 kcmil
mm²: 25 - 150 mm²
Torque: 250 lb-in/pulg/po (pounds-inch) or 28 N•m (Newton-meters)
Special Rating: HACR/CAAR Type/Tipo Q2L
UL Listed: Yes
IEC 60947-2 Standard: Yes
AIR/Nom Icu (kA) at 240V: 10 kA
Uimp (Impulse Withstand Voltage): 6 kV
Temperature Rating: 40°C
Country of Origin: Made in Mexico
