Westinghouse
Category: Breakers

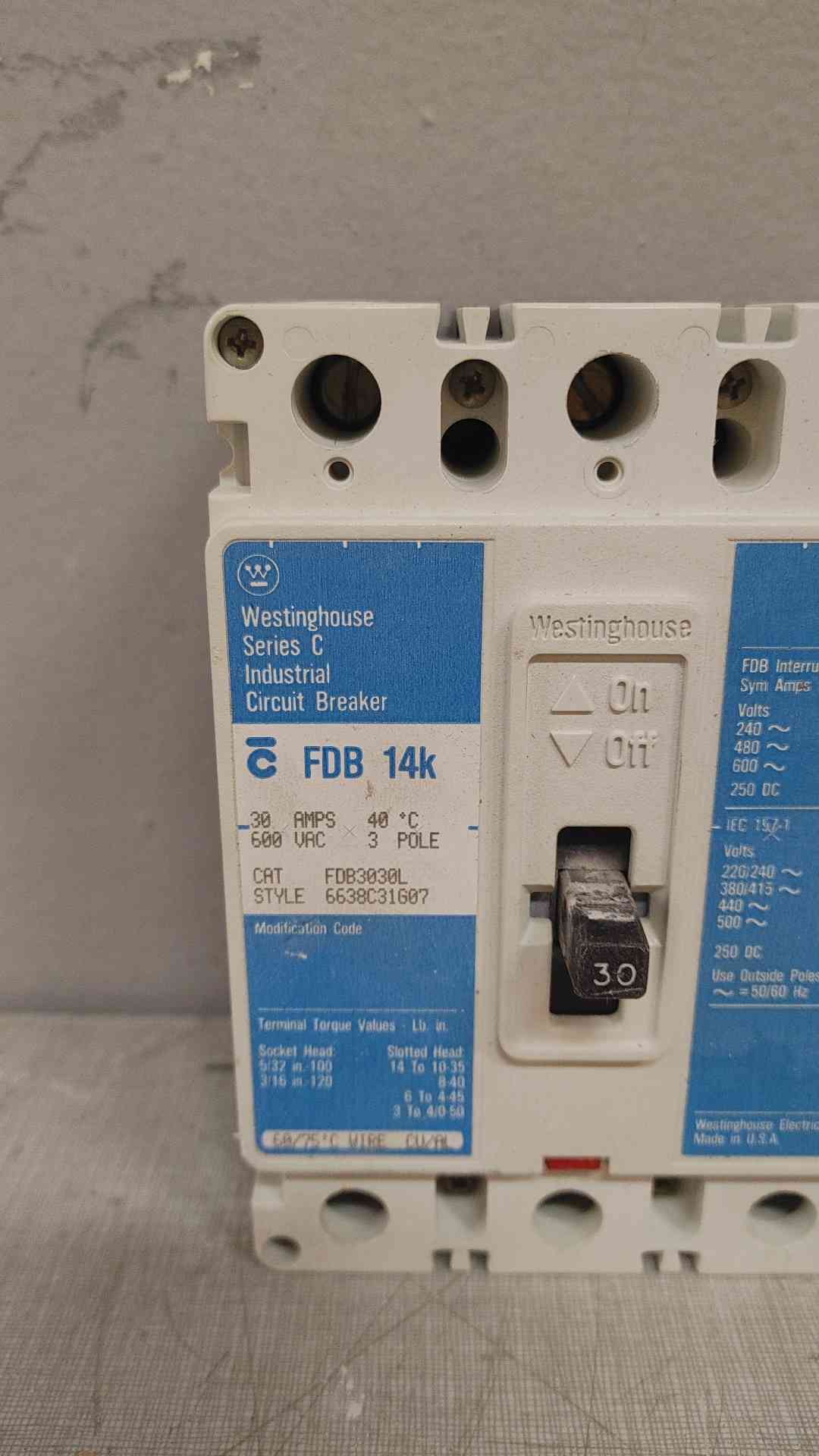

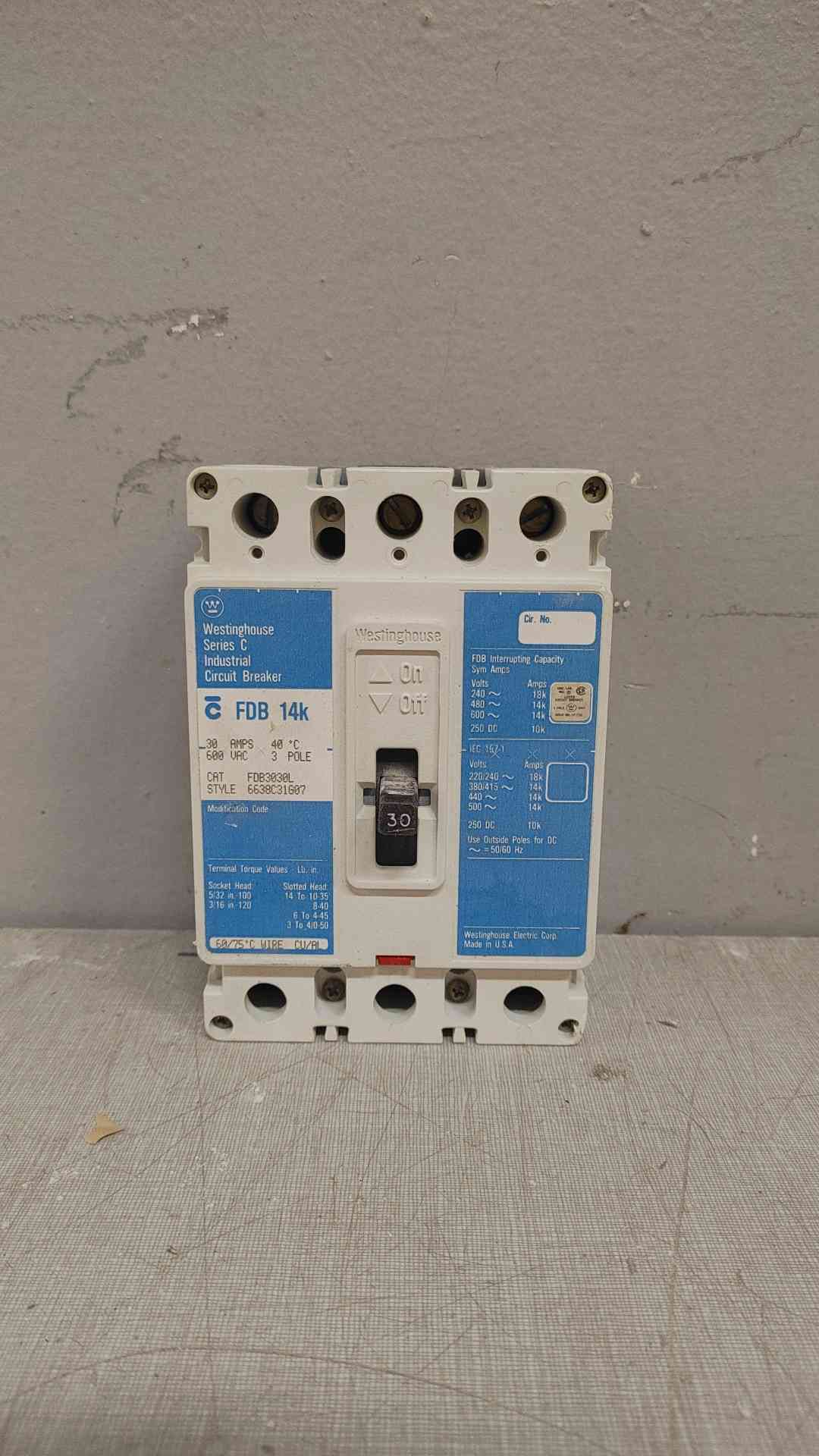

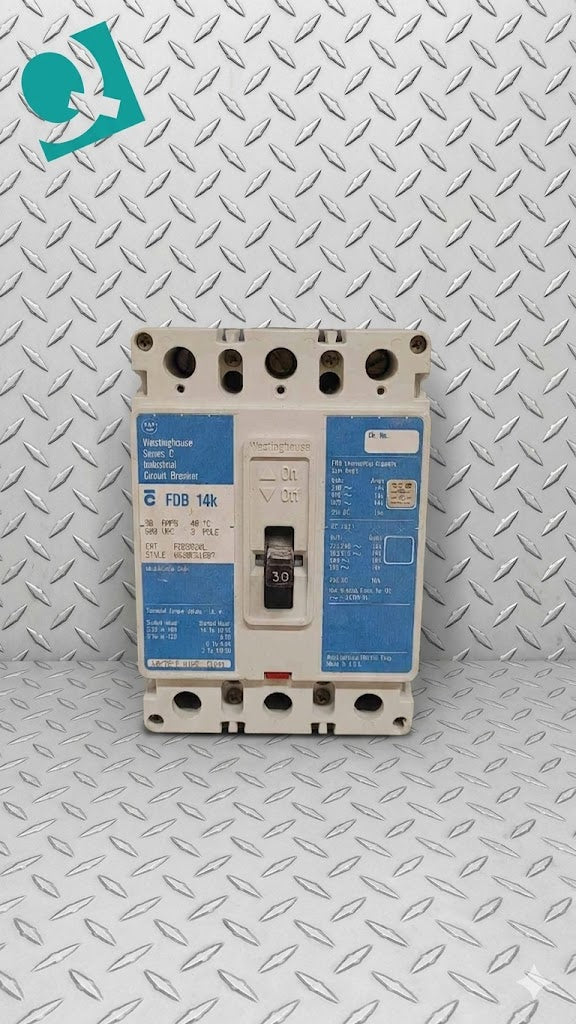

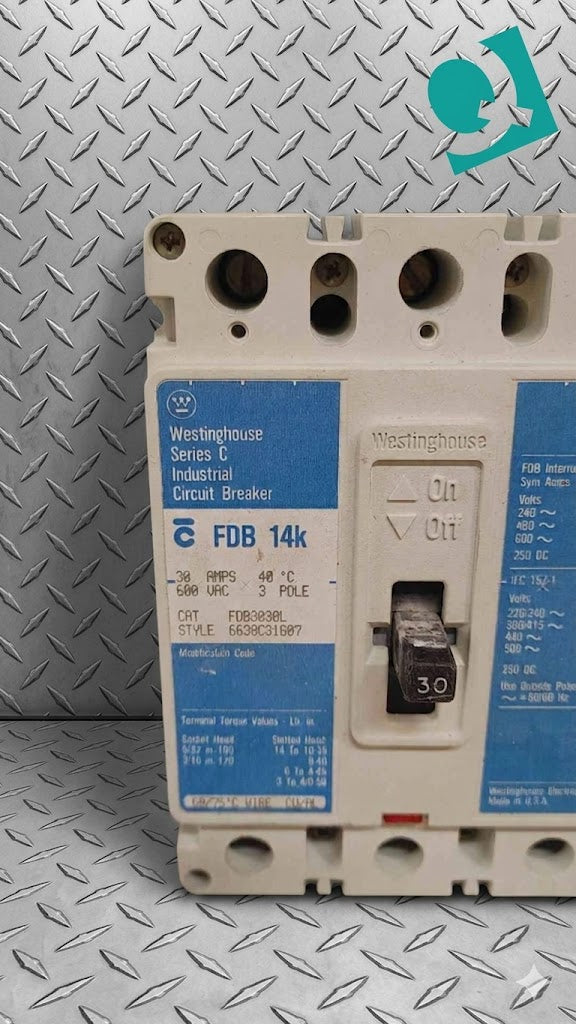

Westinghouse 3 Pole Circuit Breaker 30A 600VAC FDB3030L (109408)
Westinghouse 3 Pole Circuit Breaker 30A 600VAC FDB3030L (109408)
SKU:109408
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$150.00 USD
Unit price
/
per
Low stock: 2 left
Key Specifications:
Manufacturer: Westinghouse (now a part of Eaton Corporation). You will often see this model listed under Eaton or Cutler-Hammer brands.
Model: FDB3030L
Series: Series C
Frame Type: F-Frame
Amperage: 30 Amps, as indicated by the "30" on the handle.
Voltage Rating: Up to 600 VAC (Volts Alternating Current) and 250 VDC (Volts Direct Current).
Number of Poles: 3, meaning it can interrupt the current in three separate conductors.
Interrupting Capacity (AIC): This breaker is designated as "14k", which refers to its interrupting capacity. The label details the specific ratings at different voltages:
18,000 Amps (18kA) at 240 VAC
14,000 Amps (14kA) at 480 VAC
14,000 Amps (14kA) at 600 VAC
10,000 Amps (10kA) at 250 VDC
Trip Type: This is a thermal-magnetic trip circuit breaker. The "FDB" designation indicates that it has fixed thermal and fixed magnetic trip settings, providing protection against both overloads and short circuits.
Frequency: Rated for 50/60 Hz.
Style Number: 6638C31G07, which is a specific identifier for this product configuration.
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
