APC In Row CRAC Unit 200-240VAC 3PH ACRP101 (109468)

Model: ACRP101
Brand: APC (American Power Conversion), a brand of Schneider Electric.
Product Line: InRow RP (Row-based Precision)
Function: It is a cooling system designed to be placed in a row of IT racks. This "in-row" placement allows for more efficient cooling by capturing heat directly from the source (the servers) and distributing cooled air back to the equipment.
Cooling Type: This is a direct expansion (DX) unit, meaning it uses a refrigerant cycle to cool the air, similar to a standard air conditioner. It requires a remote air-cooled condenser.

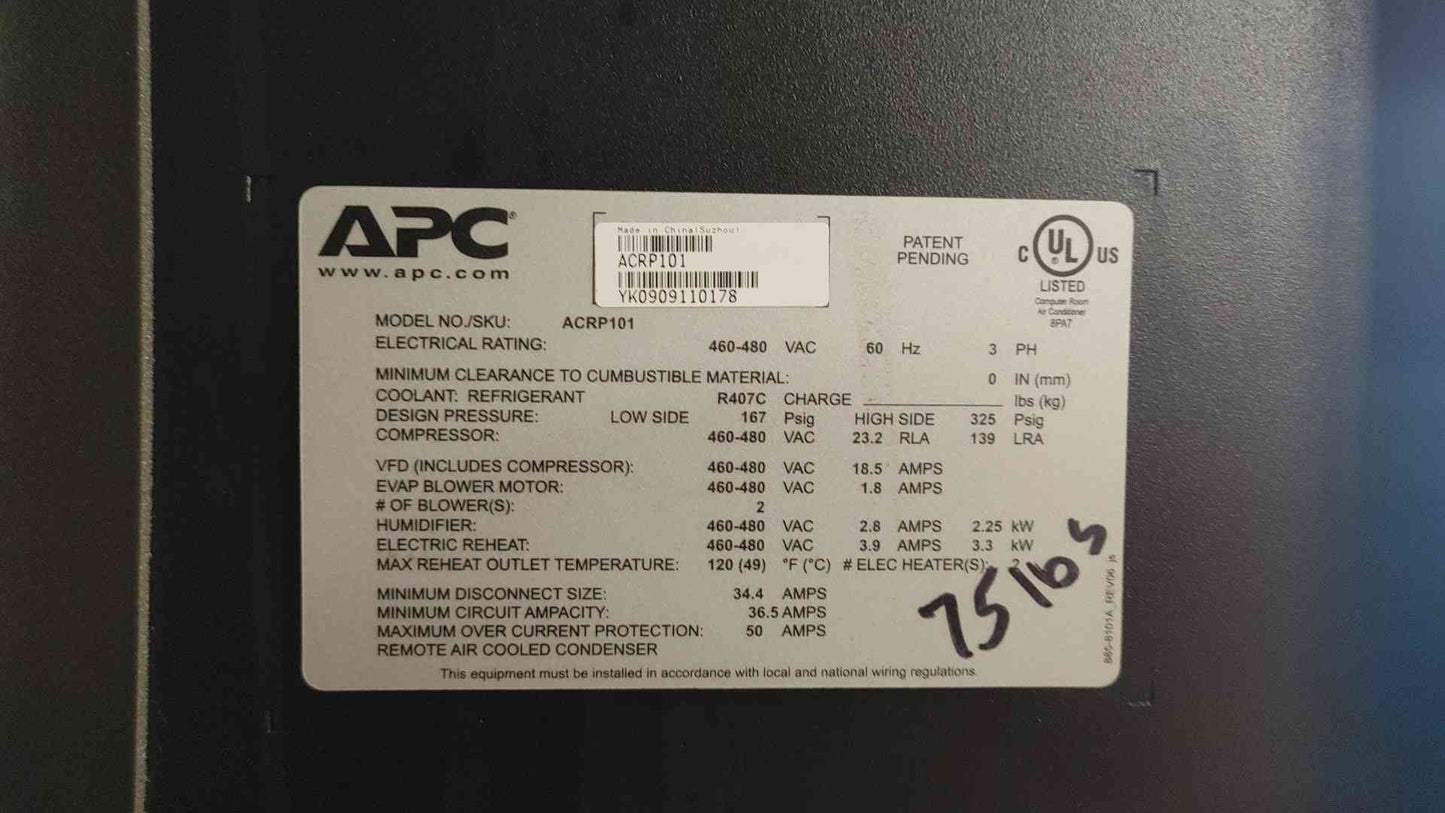

Technical Specifications from the Label:
Electrical Rating: 460-480 VAC, 60 Hz, 3 Phase
Compressor:
Voltage: 460-480 VAC
Rated Load Amps (RLA): 23.2 A
Locked Rotor Amps (LRA): 139 A
Evaporator Blower Motor:
Voltage: 460-480 VAC
Amps: 1.8 A
Number of Blowers: 2
Humidifier:
Voltage: 460-480 VAC
Amps: 2.8 A
Power: 2.25 kW
Electric Reheat:
Voltage: 460-480 VAC
Amps: 3.9 A
Power: 3.3 kW
System Protection:
Minimum Circuit Ampacity: 36.5 A
Maximum Over Current Protection: 50 A
How it Works:
The APC InRow RP unit is designed to be part of a hot aisle/cold aisle containment strategy in a data center. It draws in hot exhaust air from the back of servers, cools it using its internal refrigerant-based cooling system, and then distributes the cooled air into the cold aisle for the servers to draw in. This close-coupled cooling approach is more efficient than traditional room-based cooling as it addresses heat loads at their source.
