Quantum Technology Equipment
Category: Breakers

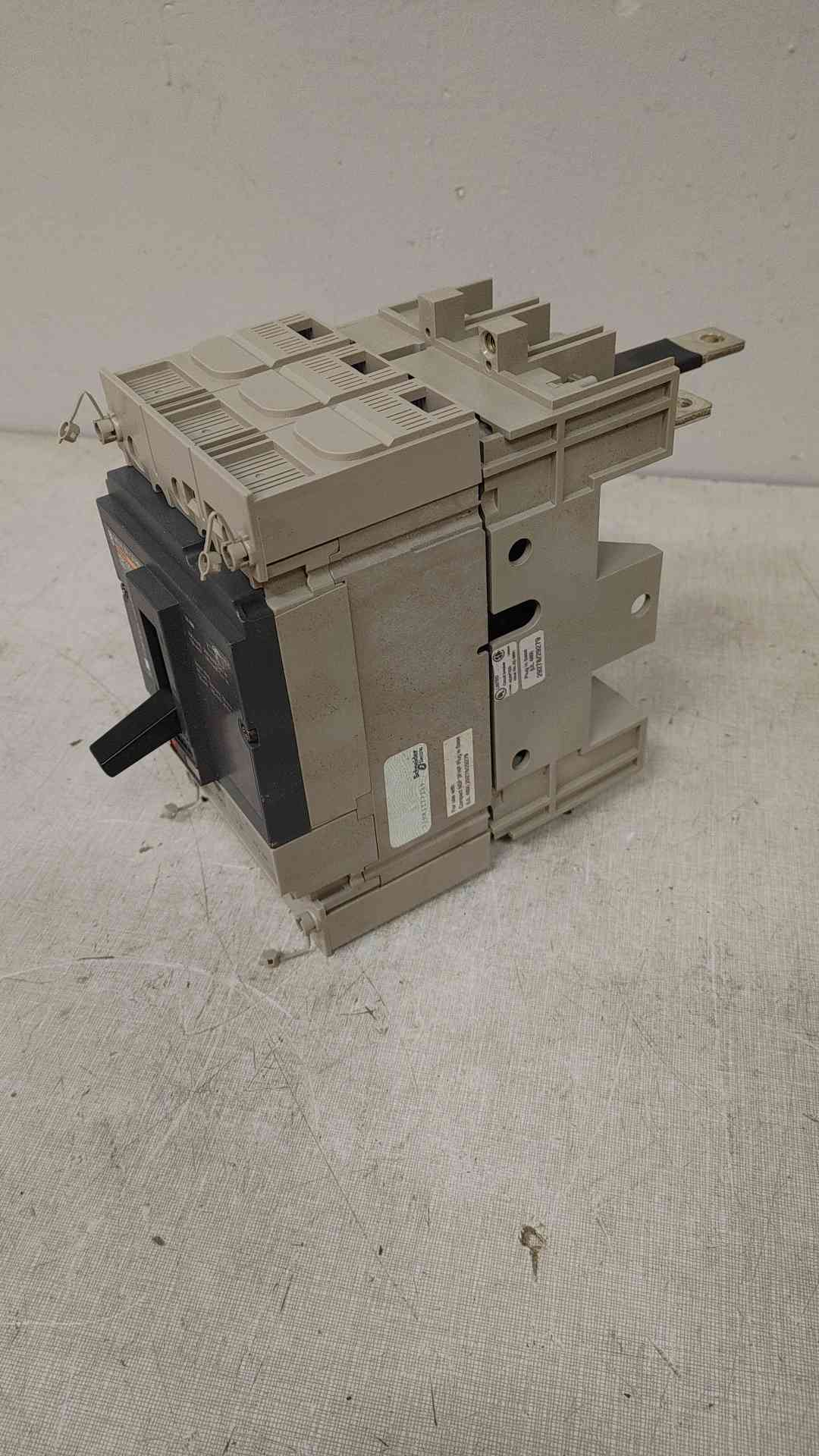

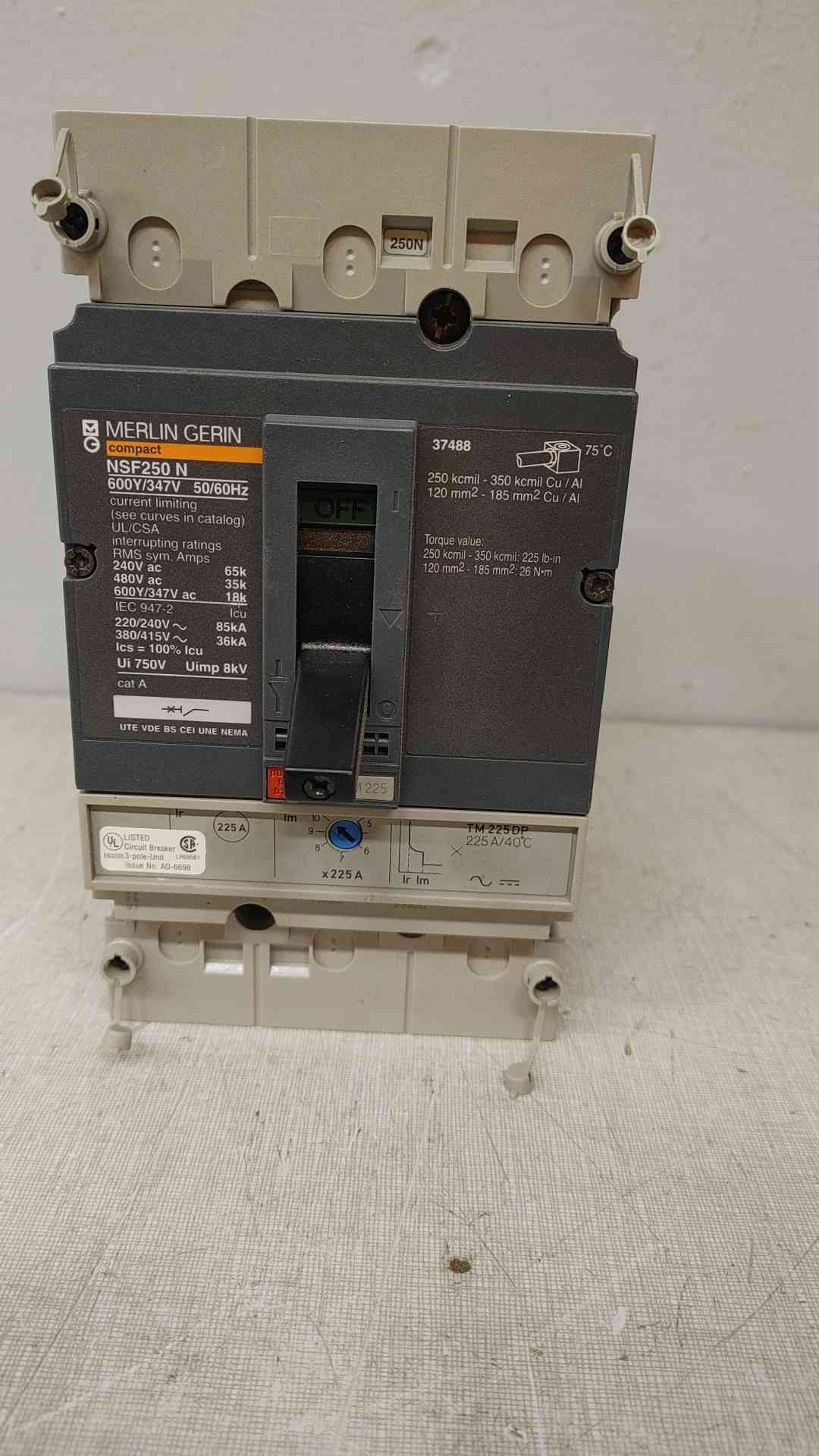

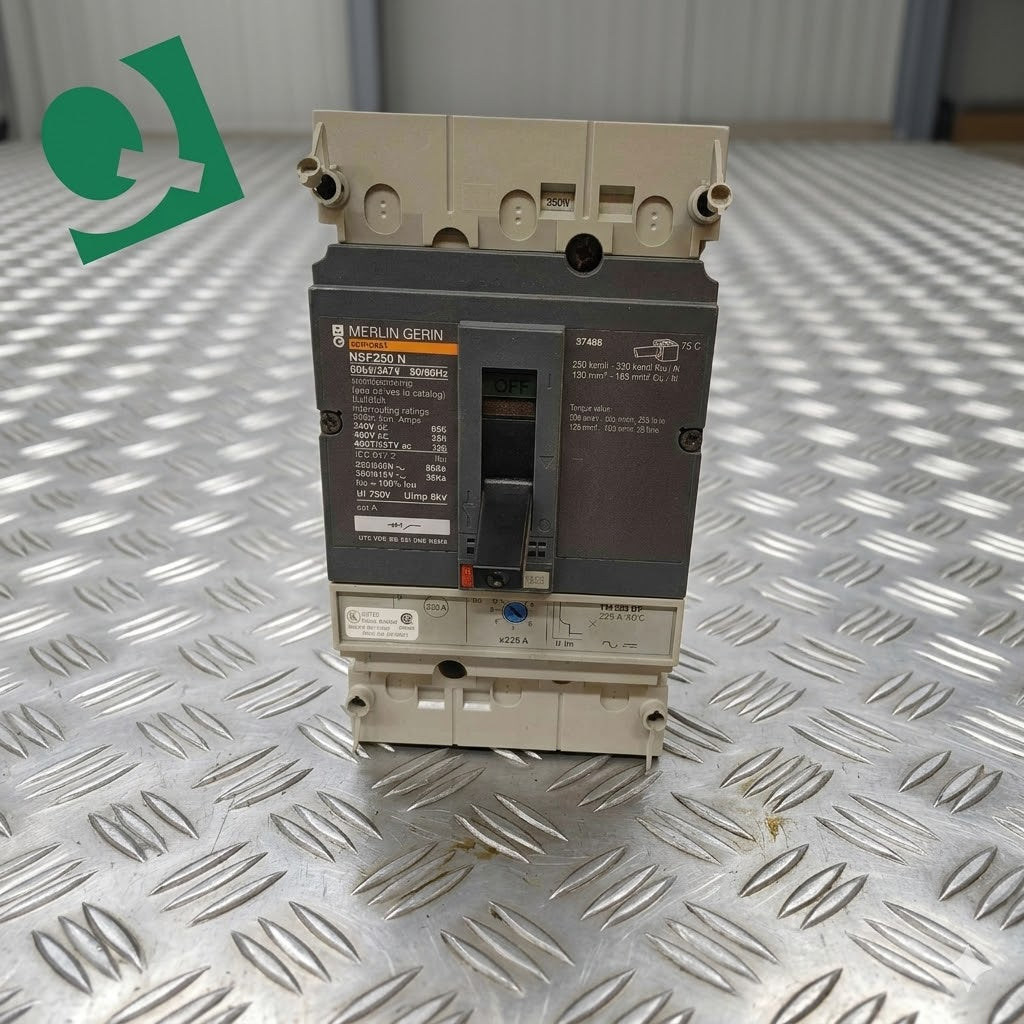

Merlin Gerin NSF250 N 225A 3 Pole Circuit Breaker
Merlin Gerin NSF250 N 225A 3 Pole Circuit Breaker
SKU:109504
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$200.00 USD
Unit price
/
per
Low stock: 2 left
Key Features:

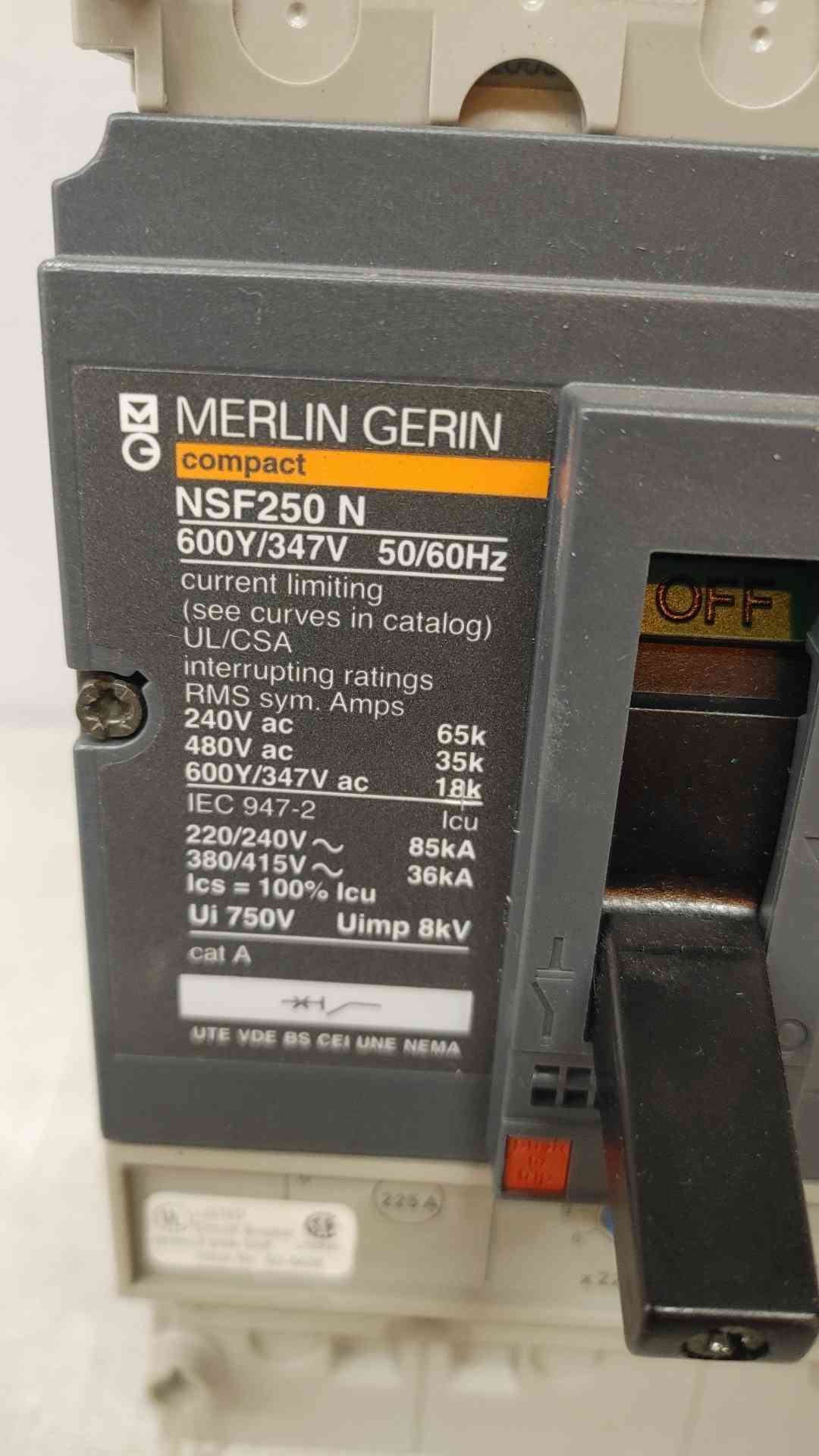

Model: Merlin Gerin Compact NSF250 N
Voltage Rating: 600Y/347V 50/60Hz
Interrupting Ratings (RMS Sym. Amps):
240V ac: 65kA
480V ac: 35kA
600Y/347V ac: 18kA
IEC 947-2 Ratings:
Icu 220/240V~: 85kA
Icu 380/415V~: 36kA
Ics = 100% Icu
Rated Impulse Withstand Voltage (Uimp): 8kV
Insulation Voltage (Ui): 750V

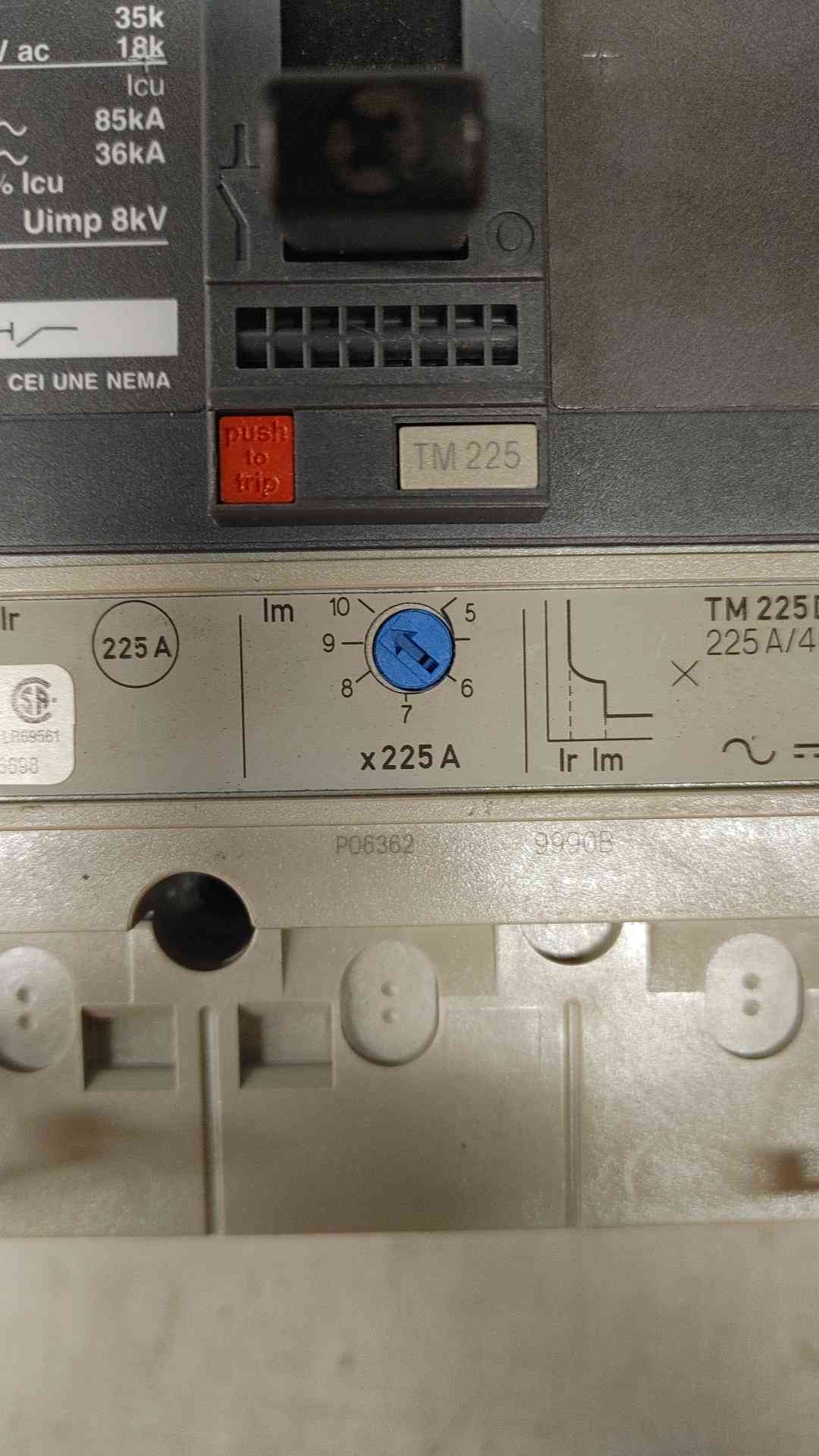

Trip Unit: TM 225D, set to 225A. It has adjustable "Ir" (long-time delay) and "Im" (instantaneous) settings. The dial for "Im" shows settings from 5 to 10.
Current Limiting: Yes (refer to catalog for curves)
Certification: UL/CSA listed (UL Listed circuit breaker, UL file LR69561, CSA file 6098)
Terminal Torque:
250 kcmil - 350 kcmil Cu / Al: 120 mm² - 185 mm² Cu / Al
Torque value: 250 kcmil - 350 kcmil 225 lb-in / 120 mm² - 185 mm² 20 N.m
Model: Merlin Gerin Compact NSF250 N
Voltage Rating: 600Y/347V 50/60Hz
Interrupting Ratings (RMS Sym. Amps):
240V ac: 65kA
480V ac: 35kA
600Y/347V ac: 18kA
IEC 947-2 Ratings:
Icu 220/240V~: 85kA
Icu 380/415V~: 36kA
Ics = 100% Icu
Rated Impulse Withstand Voltage (Uimp): 8kV
Insulation Voltage (Ui): 750V
Trip Unit: TM 225D, set to 225A. It has adjustable "Ir" (long-time delay) and "Im" (instantaneous) settings. The dial for "Im" shows settings from 5 to 10.
Current Limiting: Yes (refer to catalog for curves)
Certification: UL/CSA listed (UL Listed circuit breaker, UL file LR69561, CSA file 6098)
Terminal Torque:
250 kcmil - 350 kcmil Cu / Al: 120 mm² - 185 mm² Cu / Al
Torque value: 250 kcmil - 350 kcmil 225 lb-in / 120 mm² - 185 mm² 20 N.m
