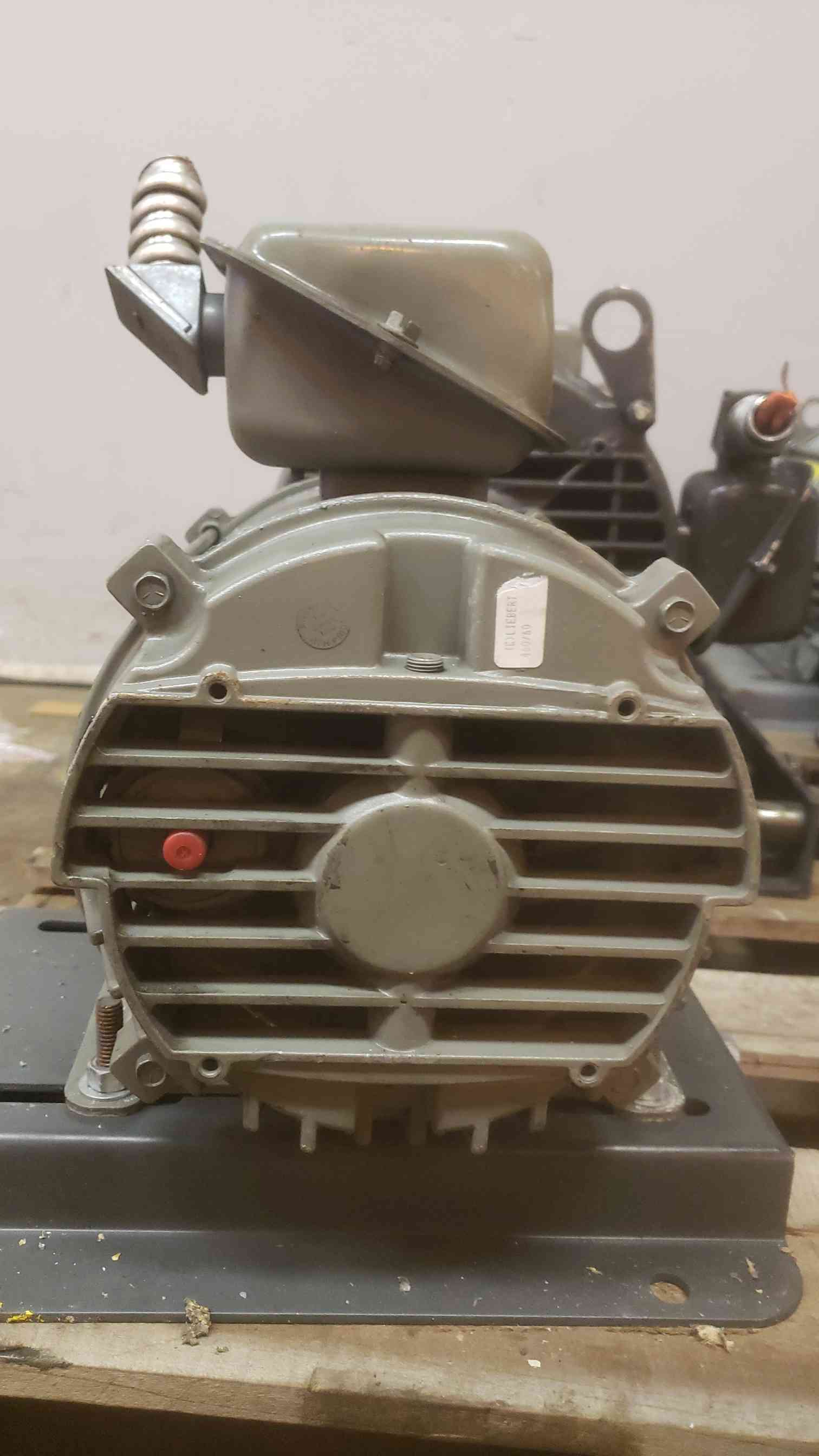

US Motors 5HP 208-230/460V 3PH Motor Model G539Y (SKU: 109534)

U.S. Electrical Motors 5 HP, 3-phase, 60 Hz motor with a rated speed of 1735 RPM. The model number is G539Y, and it has a frame size of 184T. It can operate on 208-230/460 volts. The motor has an open drip-proof (ODP) enclosure and a service factor (SF) of 1.15. It features Class H insulation and a continuous duty cycle with a maximum ambient temperature of 40°C. The NEMA nominal efficiency is 85.5%. The shaft end bearing is 6206-2Z-J/C3, and the opposite end bearing is 6205-2Z-J/C3. It also has manual thermal protection.

*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*

Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.

We can ship international freight. Please contact us if you have any questions or issues checking out.

IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.

The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.

Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
