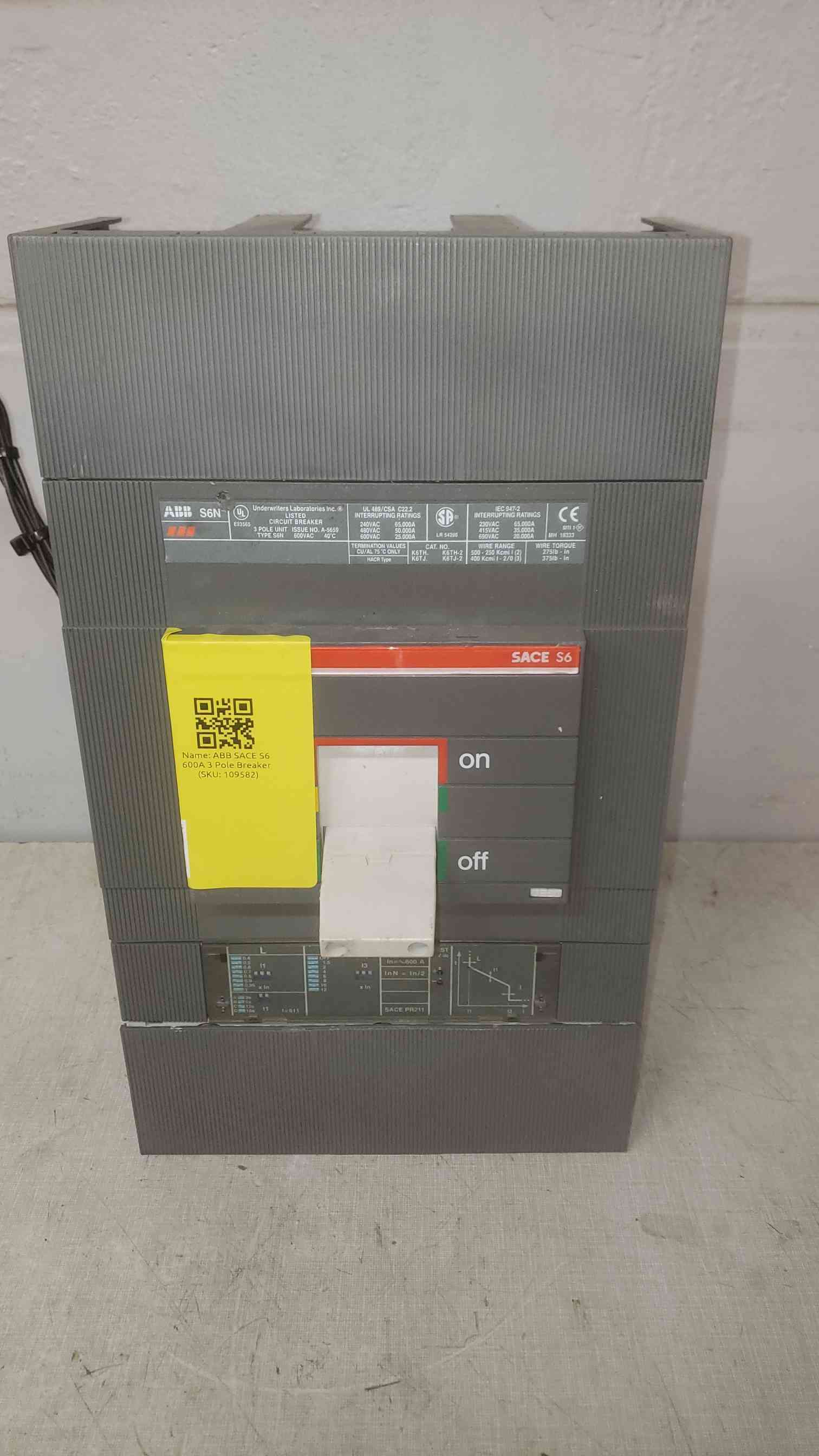

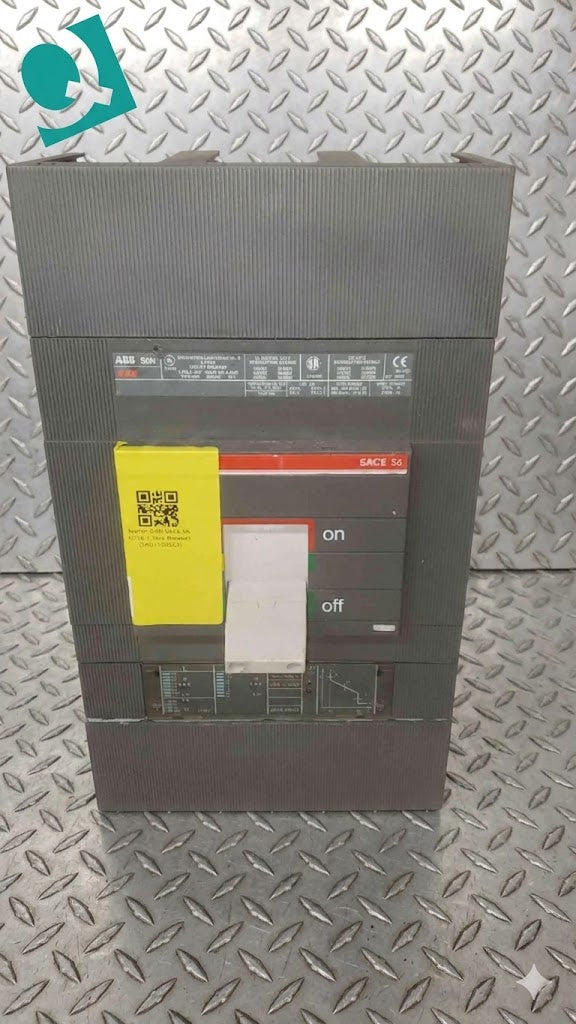

ABB SACE S6 600A 3 Pole Breaker (SKU: 109582)

General Information:

Manufacturer: ABB
Model Series: SACE S6
Type: Circuit Breaker
Poles: 3 Pole Unit
Voltage Rating: 600VAC
Temperature Rating: 40°C

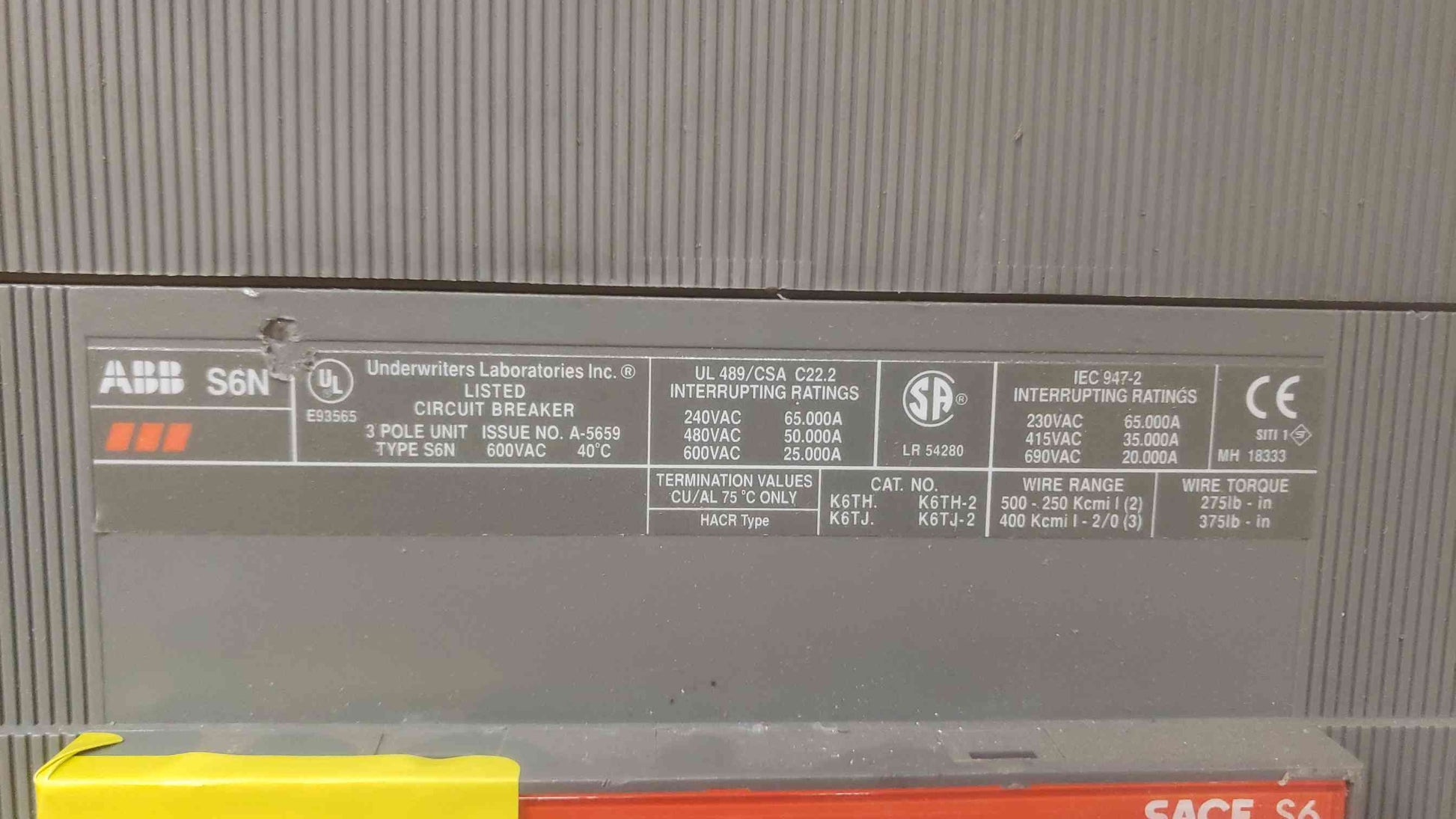

Interrupting Ratings (UL 489 / CSA C22.2):

240VAC: 65,000A
480VAC: 50,000A
600VAC: 25,000A
Interrupting Ratings (IEC 947-2):

230VAC: 65,000A
415VAC: 35,000A
690VAC: 20,000A
Termination Values:

CU/AL 75°C Only
HACR Type
Catalog Numbers:

K6TH
K6TH-2
K6TJ
K6TJ-2
Wire Range:

500 - 250 Kcmil (2)
400 Kcmil 1-2/0 (3)
Wire Torque:

275lb-in
375lb-in
Additional Certifications:

UL Listed (E93565)
CSA Certified (LR 54280)
CE Mark
SITI 1
MH 18333
