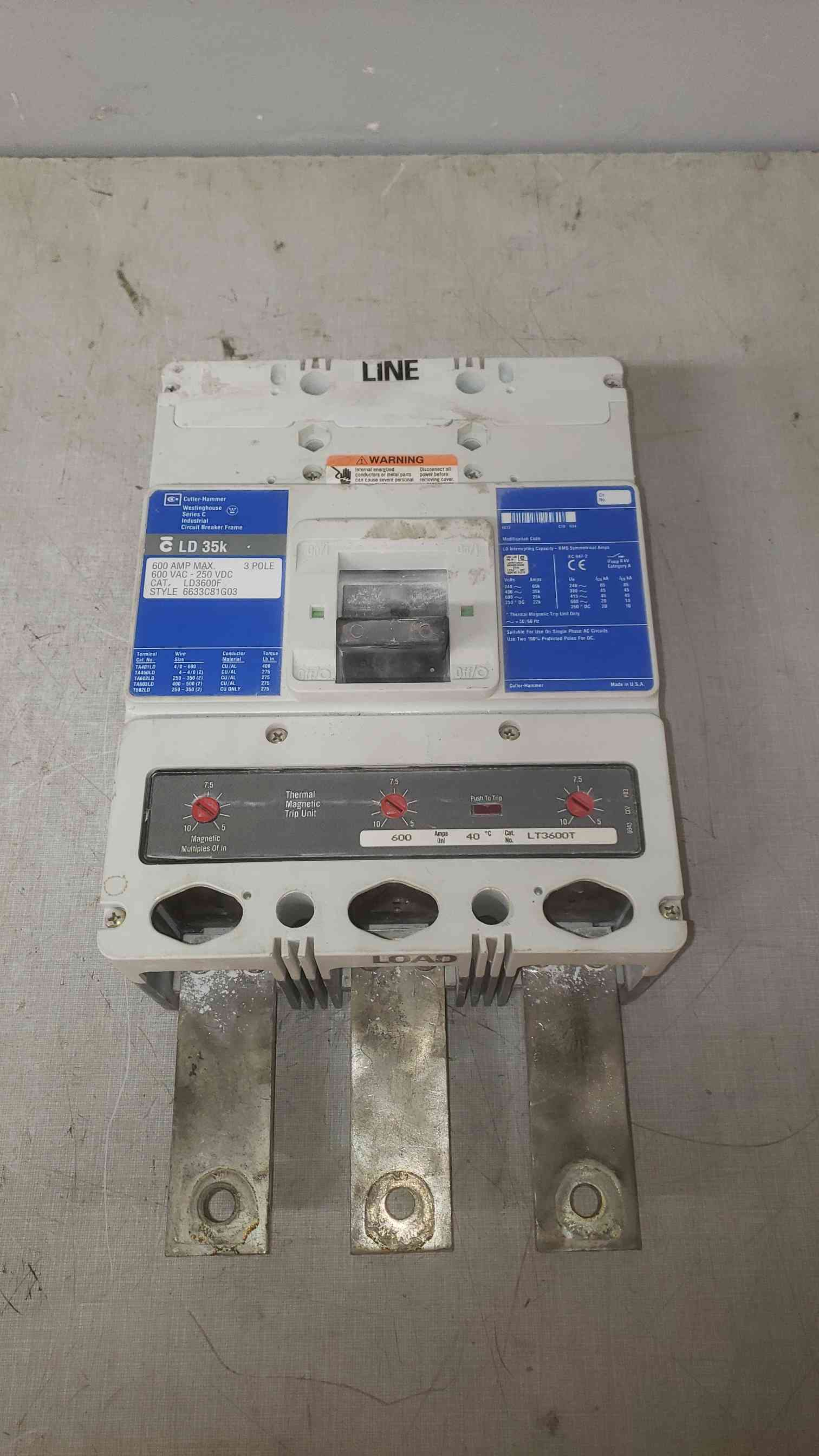

Cutler-Hammer 600A 600VAC-250VDC 3 Pole Breaker LD3600F (SKU: 109589)

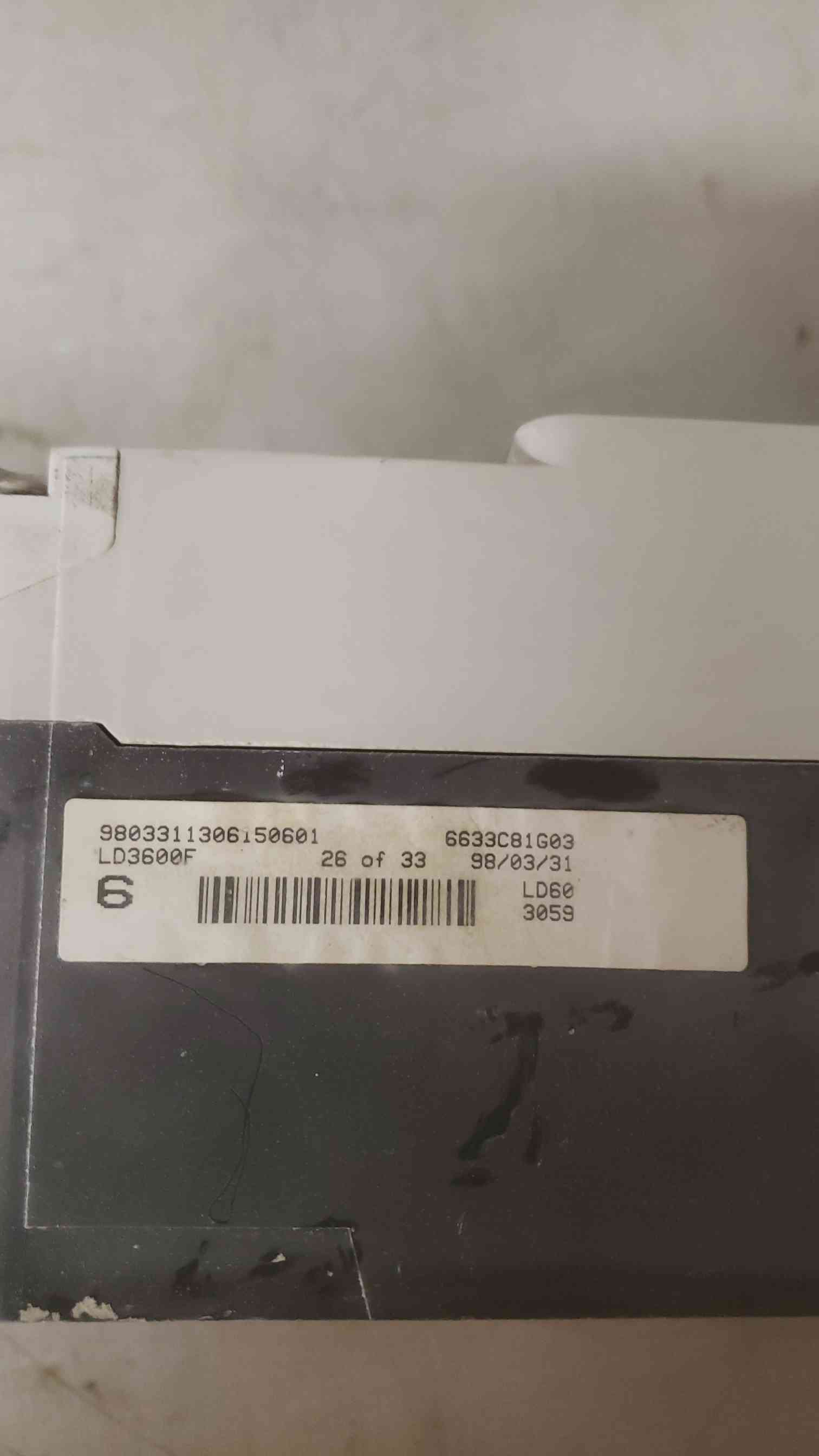

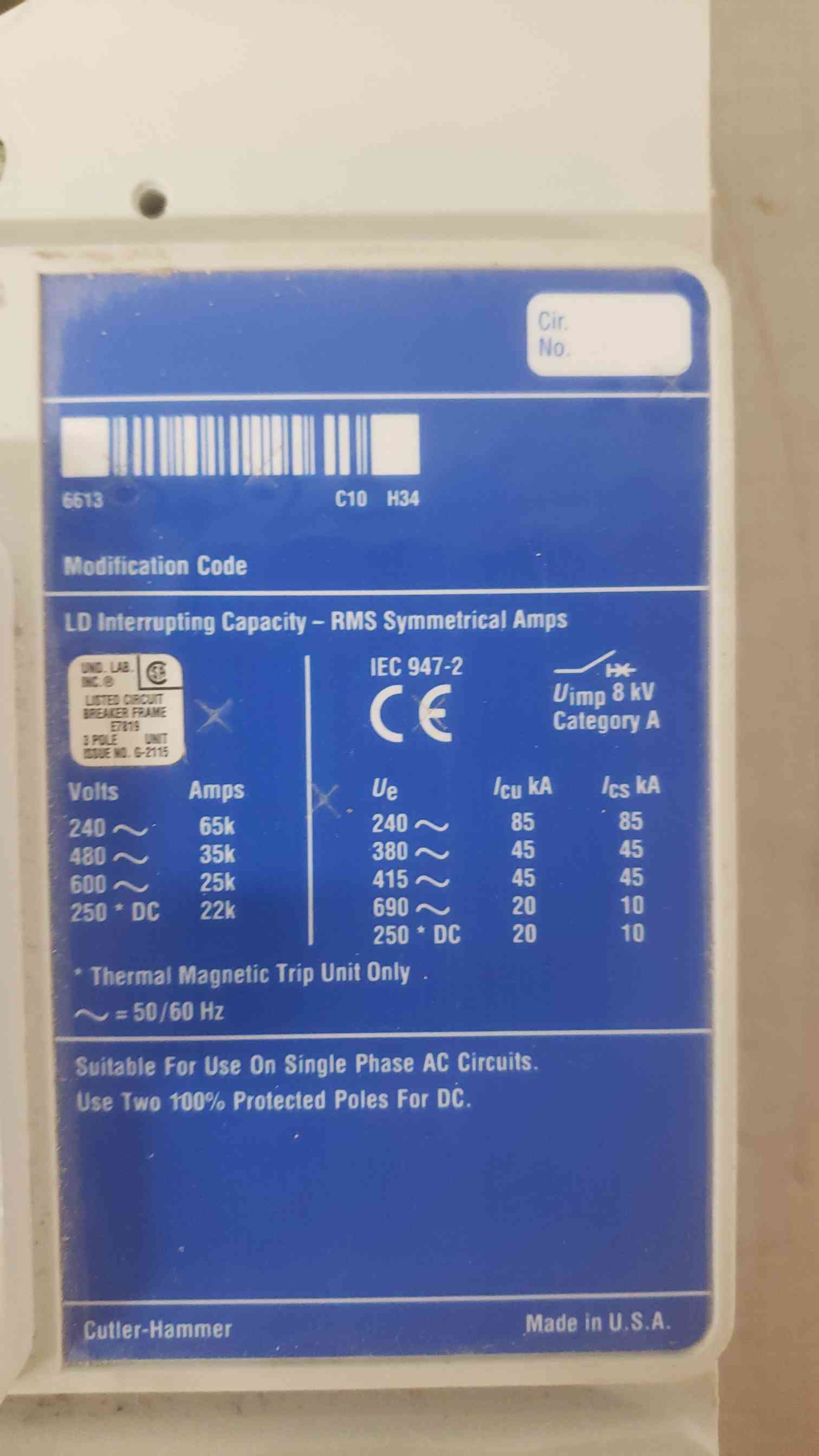

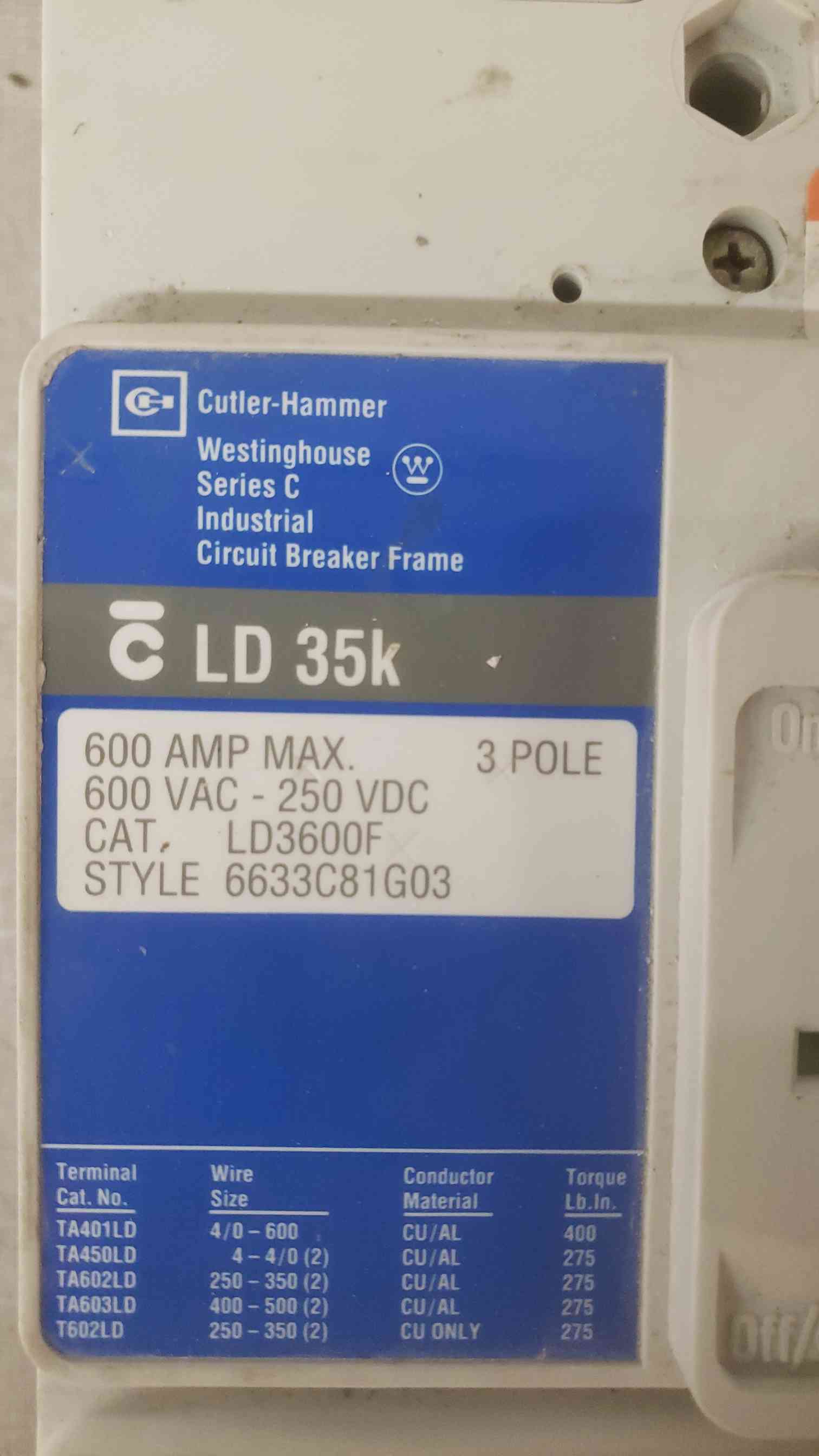

Manufacturer: Cutler-Hammer (part of Westinghouse)Model: LD35kMaximum Amperage: 600 AMP MAXVoltage Rating:600 VAC (Alternating Current)250 VDC (Direct Current)Poles: 3 POLECatalog No.: LD3600FStyle No.: 6633C81G03Interrupting Capacity (RMS Symmetrical Amps):At 240V AC: 65kAAt 480V AC: 35kAAt 600V AC: 25kAAt 250V DC: 22kAIEC 947-2 (CE certified):At 240V AC: Icu 85kA / Ics 85kAAt 380V AC: Icu 45kA / Ics 45kAAt 415V AC: Icu 45kA / Ics 45kAAt 690V AC: Icu 20kA / Ics 10kAAt 250V DC: Icu 20kA / Ics 10kATrip Unit: It features a "Thermal Magnetic Trip Unit Only," with adjustable settings for:Long Time (In: 500 Amps shown as setting, adjustable from 250 to 500)Short Time (Ir: adjustable from 1.5 to 10)Instantaneous (Ii: adjustable from 2 to 10)Thermal Trip Unit rating: 500 amps, 40°CTerminal Information (for connecting wires):TA401LD: Wire Size 4/0 - 600, CU/AL conductor, Torque 400 Lb.-In.TA450LD: Wire Size 4-4/0 (2), CU/AL conductor, Torque 275 Lb.-In.TA602LD: Wire Size 250 - 350 (2), CU/AL conductor, Torque 275 Lb.-In.TA603LD: Wire Size 400 - 500 (2), CU/AL conductor, Torque 275 Lb.-In.TA621D: Wire Size 250 - 350 (2), CU ONLY conductor, Torque 275 Lb.-In.Suitable for Use On Single Phase AC Circuits.Can Use Two 100% Protected Poles For DC.Made in U.S.A.
