Cutler-Hammer
Category: Breakers

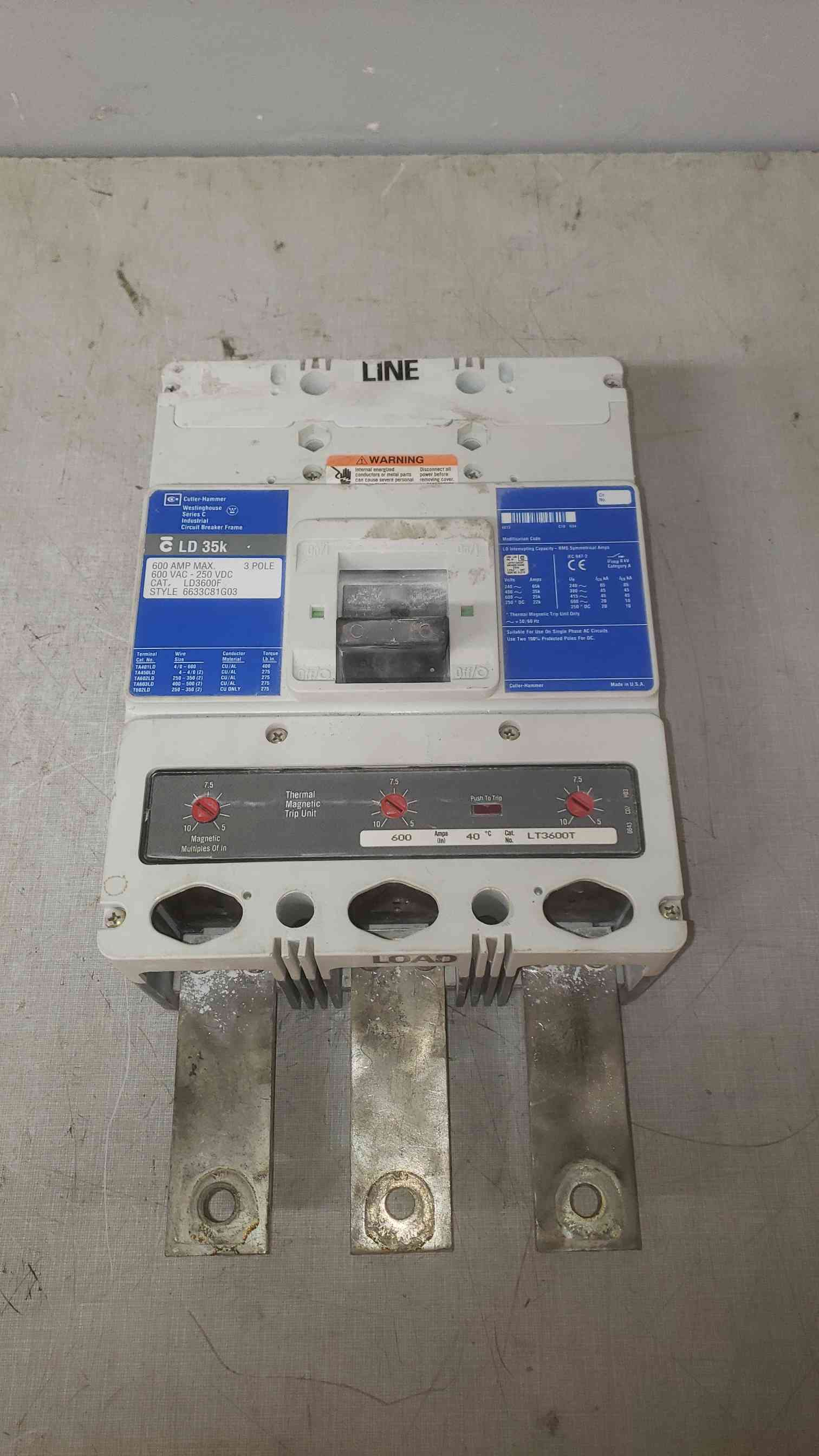

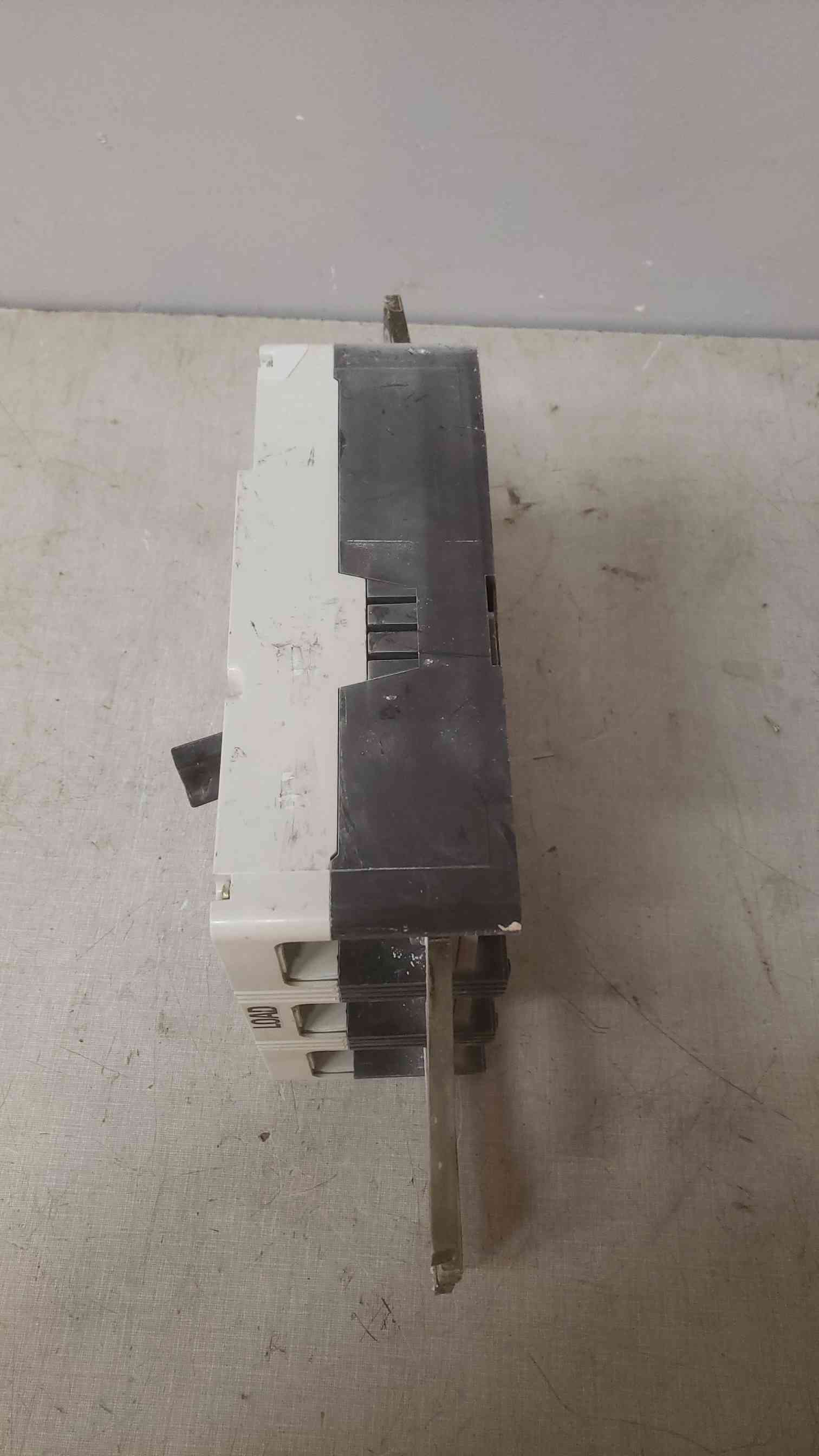

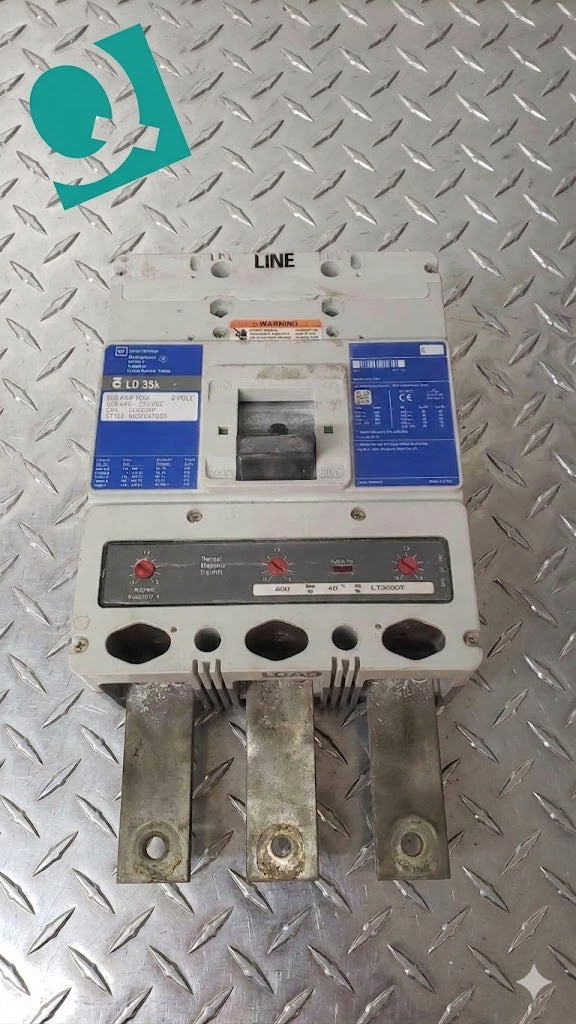

Cutler-Hammer 600A 600VAC-250VDC 3 Pole Breaker LD3600F (SKU: 109589)
Cutler-Hammer 600A 600VAC-250VDC 3 Pole Breaker LD3600F (SKU: 109589)
SKU:109589
Regular price
$800.00 USD
Regular price
Sale price
$800.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$800.00 USD
Unit price
/
per
Low stock: 1 left
*Local Pickup Does Not Include any Palletization* Manufacturer: Cutler-Hammer (part of Westinghouse)
Model: LD35k
Maximum Amperage: 600 AMP MAX
Voltage Rating:
600 VAC (Alternating Current)
250 VDC (Direct Current)
Poles: 3 POLE
Catalog No.: LD3600F
Style No.: 6633C81G03

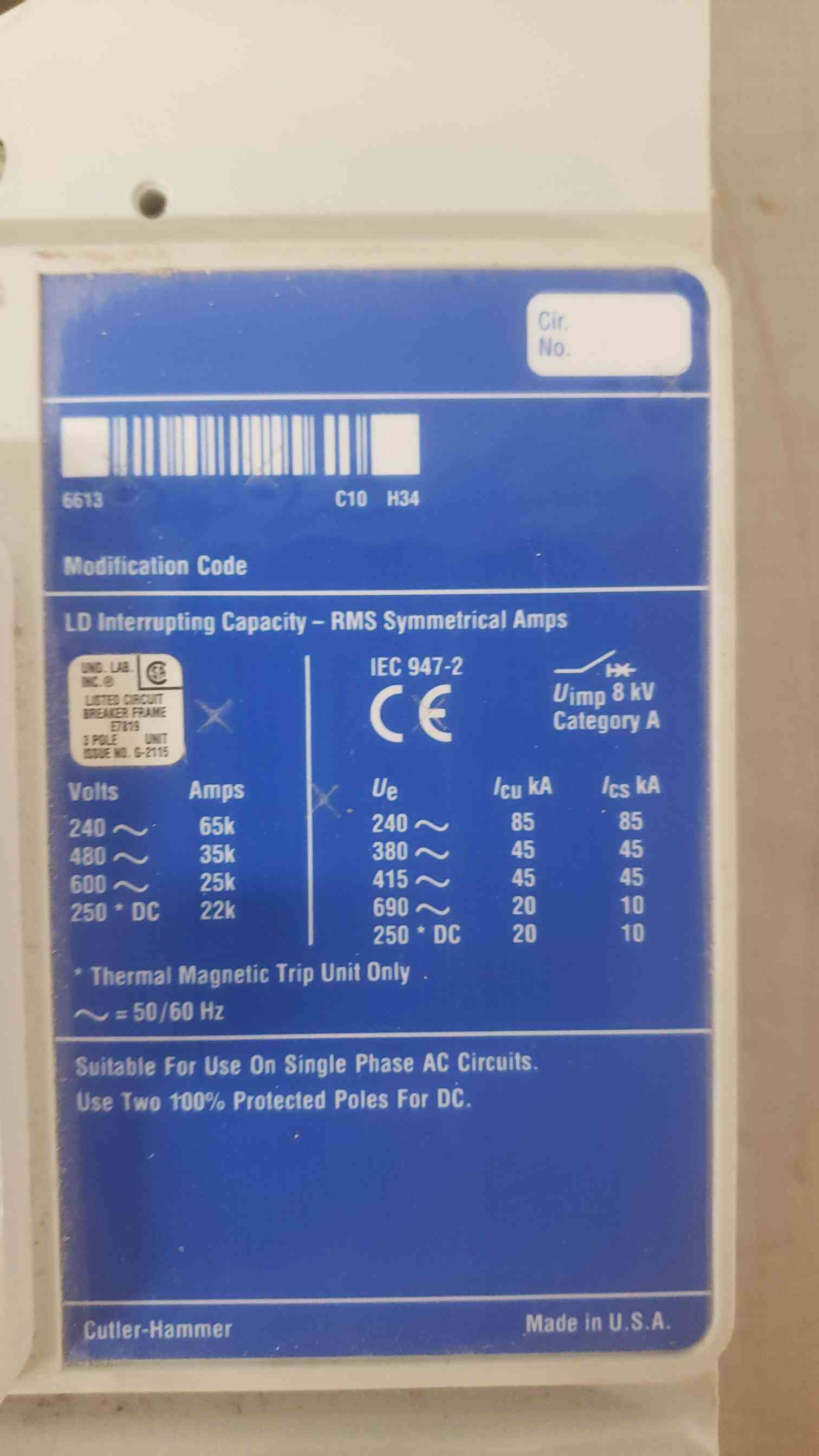

Interrupting Capacity (RMS Symmetrical Amps):
At 240V AC: 65kA
At 480V AC: 35kA
At 600V AC: 25kA
At 250V DC: 22kA
IEC 947-2 (CE certified):
At 240V AC: Icu 85kA / Ics 85kA
At 380V AC: Icu 45kA / Ics 45kA
At 415V AC: Icu 45kA / Ics 45kA
At 690V AC: Icu 20kA / Ics 10kA
At 250V DC: Icu 20kA / Ics 10kA
Trip Unit: It features a "Thermal Magnetic Trip Unit Only," with adjustable settings for:
Long Time (In: 500 Amps shown as setting, adjustable from 250 to 500)
Short Time (Ir: adjustable from 1.5 to 10)
Instantaneous (Ii: adjustable from 2 to 10)
Thermal Trip Unit rating: 500 amps, 40°C

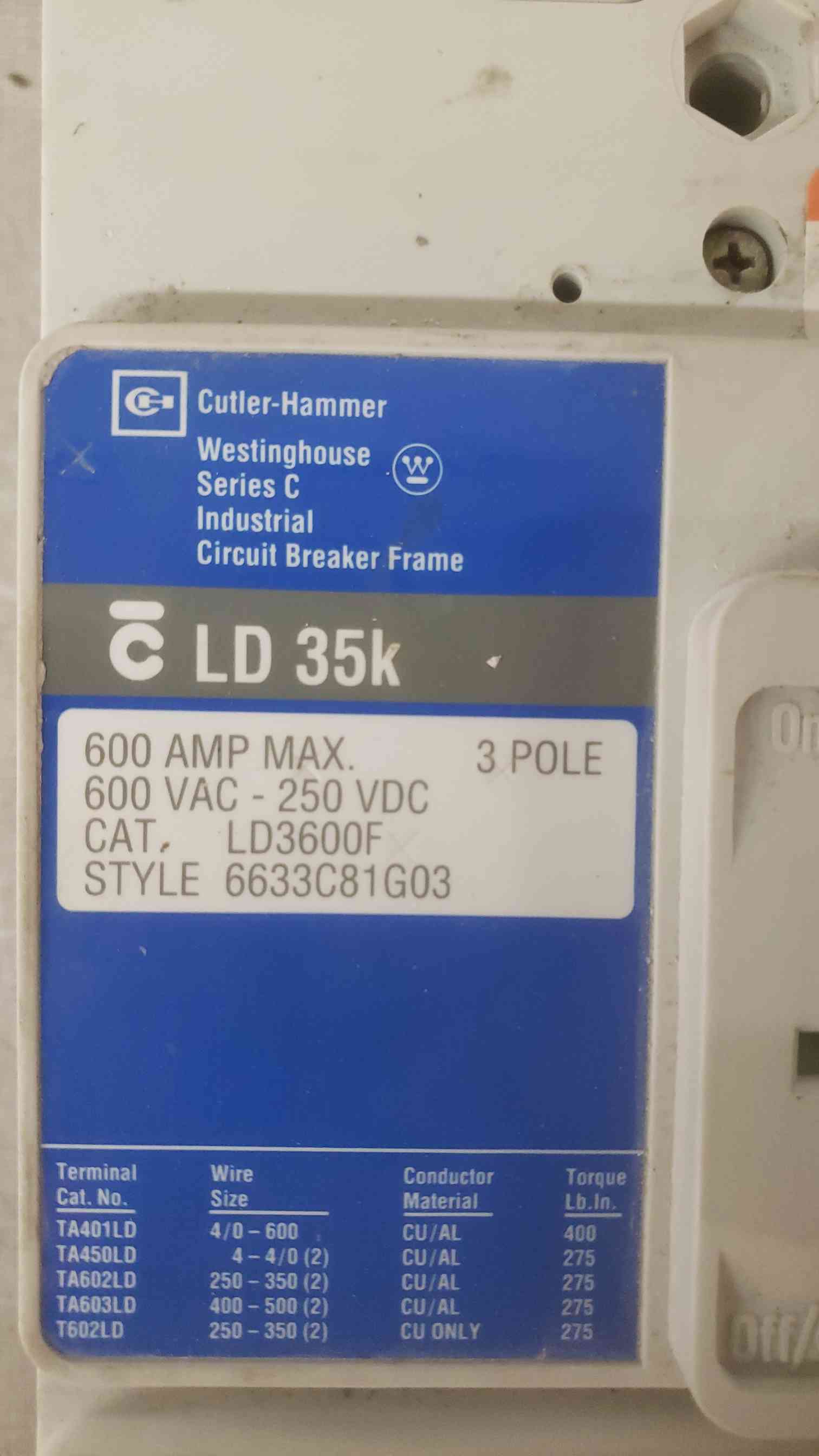

Terminal Information (for connecting wires):
TA401LD: Wire Size 4/0 - 600, CU/AL conductor, Torque 400 Lb.-In.
TA450LD: Wire Size 4-4/0 (2), CU/AL conductor, Torque 275 Lb.-In.
TA602LD: Wire Size 250 - 350 (2), CU/AL conductor, Torque 275 Lb.-In.
TA603LD: Wire Size 400 - 500 (2), CU/AL conductor, Torque 275 Lb.-In.
TA621D: Wire Size 250 - 350 (2), CU ONLY conductor, Torque 275 Lb.-In.
Suitable for Use On Single Phase AC Circuits.
Can Use Two 100% Protected Poles For DC.
Made in U.S.A.
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
