Magnetek
Category: Motors

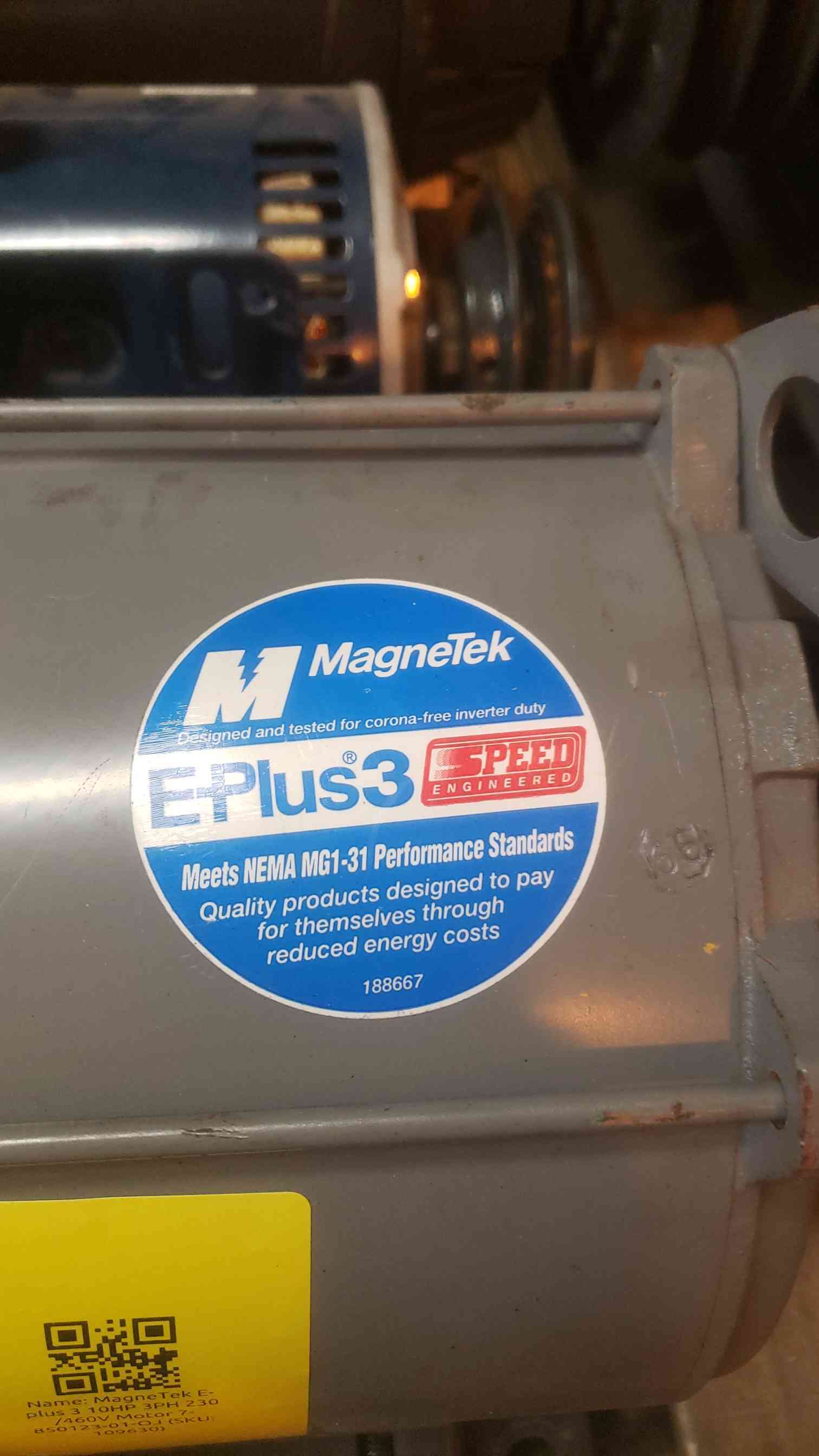

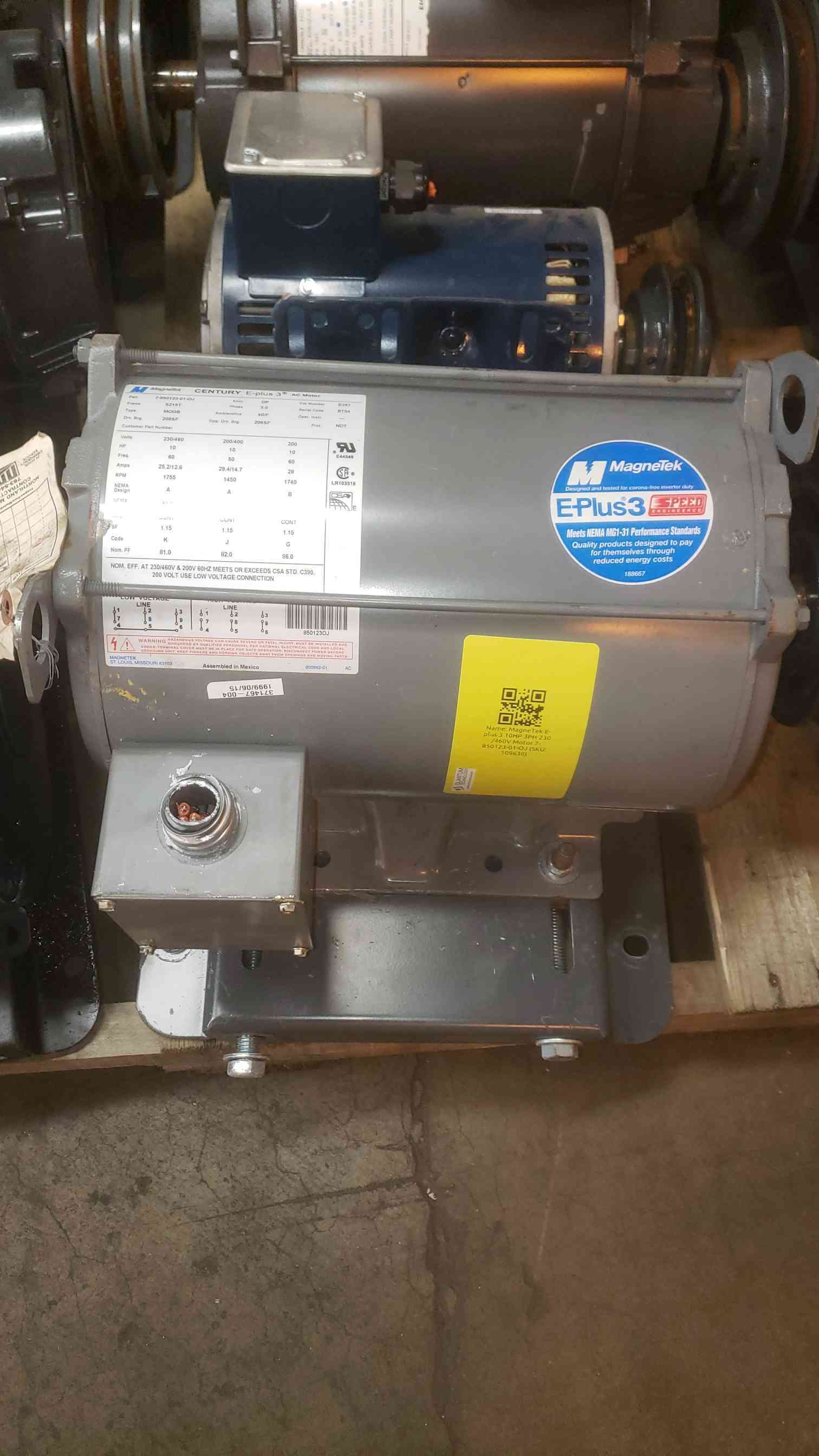

MagneTek E-plus 3 10HP 3PH 230/460V Motor 7-850123-01-OJ (SKU: 109630)
MagneTek E-plus 3 10HP 3PH 230/460V Motor 7-850123-01-OJ (SKU: 109630)
SKU:109630
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$300.00 USD
Unit price
/
per
Low stock: 3 left
Part Number: 7-950710-01-OJ
Frame: 521ST
Type: MOGB
Enclosure (Encl.): DP (Drip Proof)
Phase: 3
Cat Number: E397
Serial Code: BT04
Bearings:
Drive End (Drv. Brg.): 208SF
Opposite Drive End (Opp. Brg.): 206SF
Ambient Temperature: 40°F
Operating Instructions (Oper. Inst.): NOT (Not applicable or not specified on the plate)
Protection (Prot.): NOT (Not applicable or not specified on the plate)
Horsepower (HP): 10 HP
Frequency (Freq.): 60 Hz
Voltage and Amperage:
230 Volts: 25.2 Amps
460 Volts: 12.6 Amps
200 Volts: 29.4 Amps (at 50 Hz) / 200 Volts: 28 Amps (at 60 Hz)
RPM:
1755 RPM (at 60 Hz)
1740 RPM (at 50 Hz)
NEMA Design: A
Duty: CONT (Continuous)
Service Factor (SF): 1.15
Code: K
Nominal Power Factor (Nom. PF):
81.0% (at 230/460V, 60 Hz)
82.0% (at 200/400V, 50 Hz)
86.0% (at 200V, 60 Hz)
Nominal Efficiency (Nom. Eff.):
91.7% (at 230/460V, 60 Hz)
89.5% (at 200/400V, 50 Hz)
89.5% (at 200V, 60 Hz)
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
