Siemens
Category: Panelboards

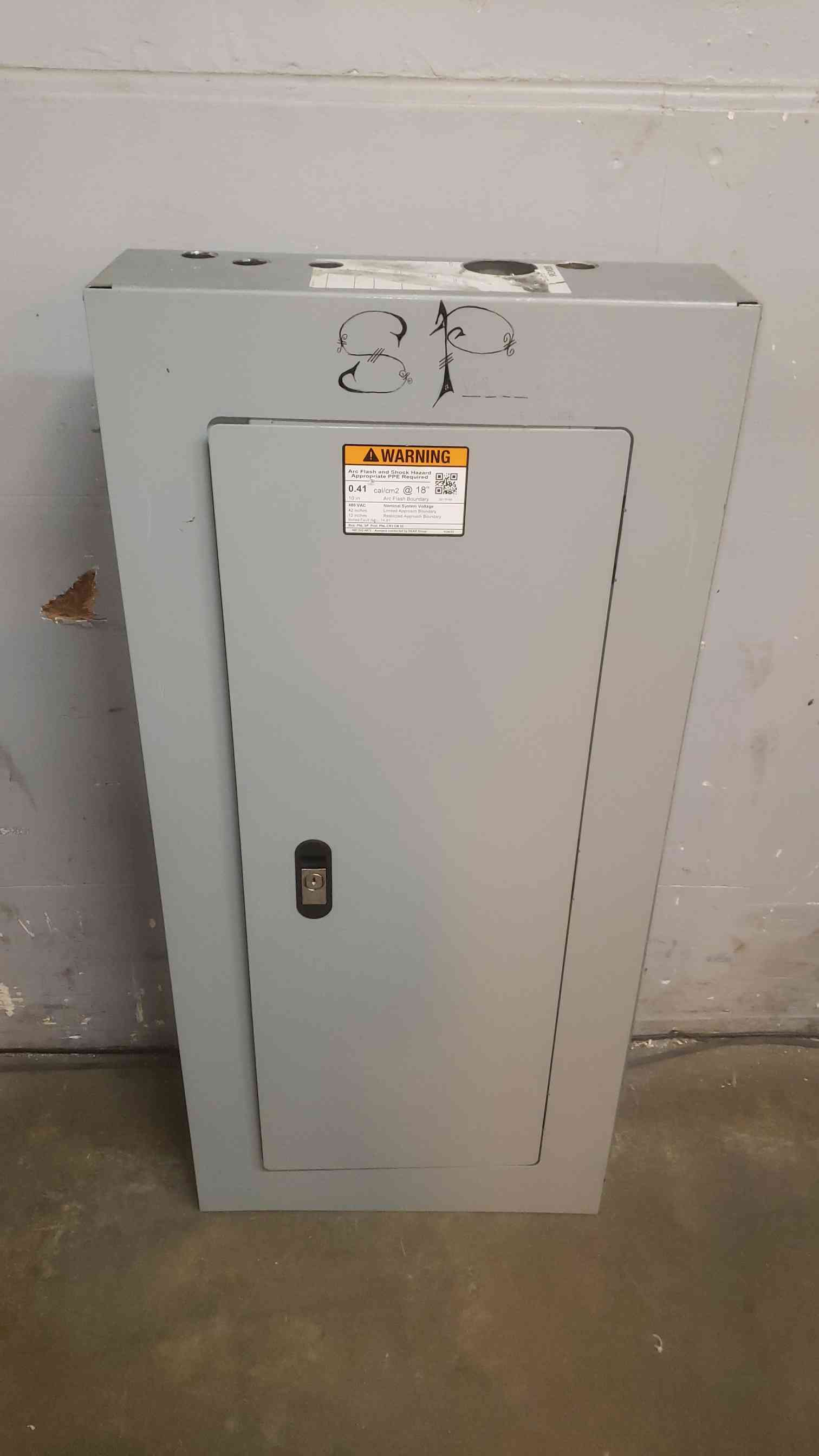

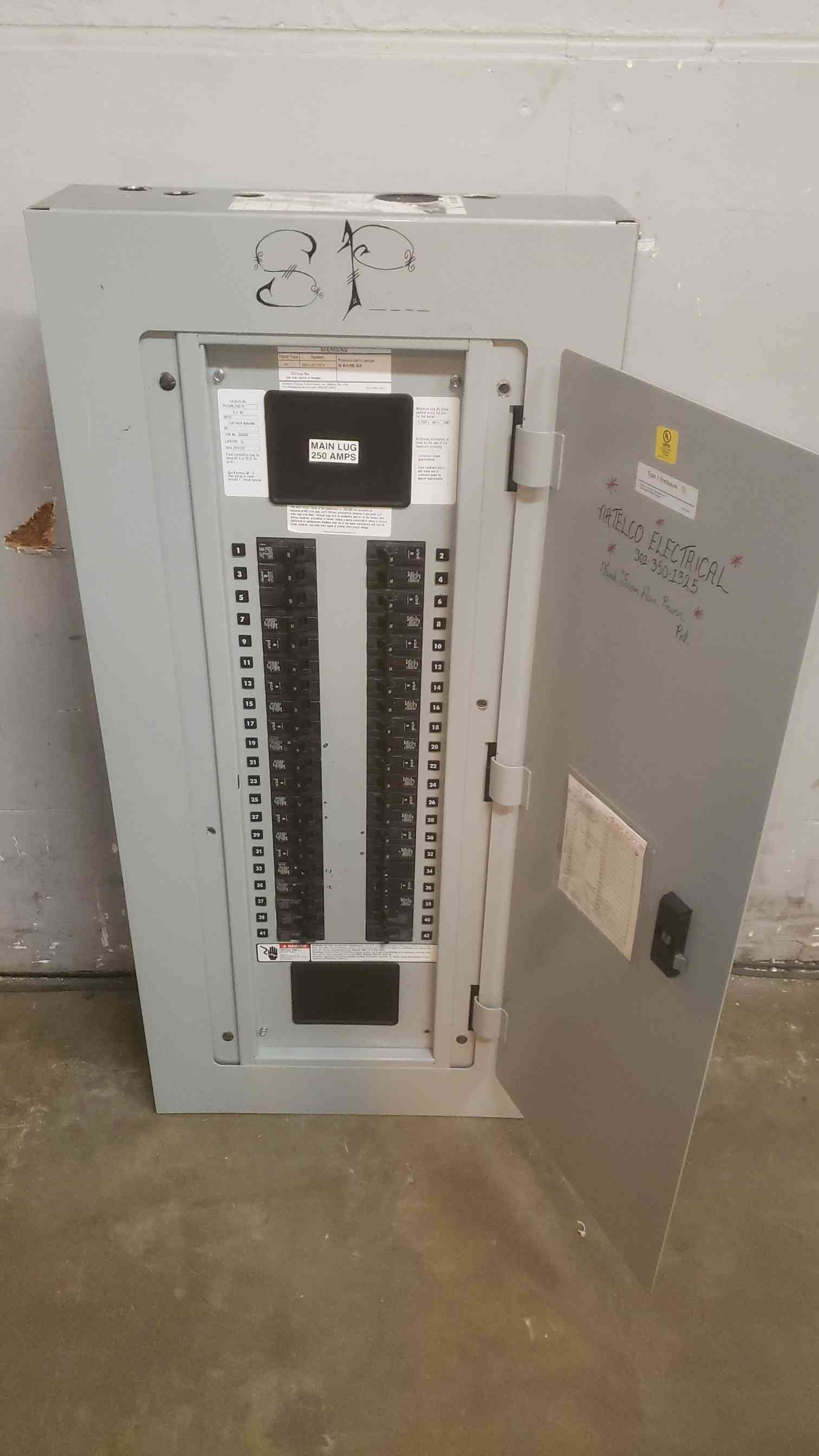

Siemens 250A Max 208Y/120 3PH 4W Panel Box P1C42ML250CTS (SKU: 109654)
Siemens 250A Max 208Y/120 3PH 4W Panel Box P1C42ML250CTS (SKU: 109654)
SKU:109654
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$200.00 USD
Unit price
/
per
Low stock: 1 left

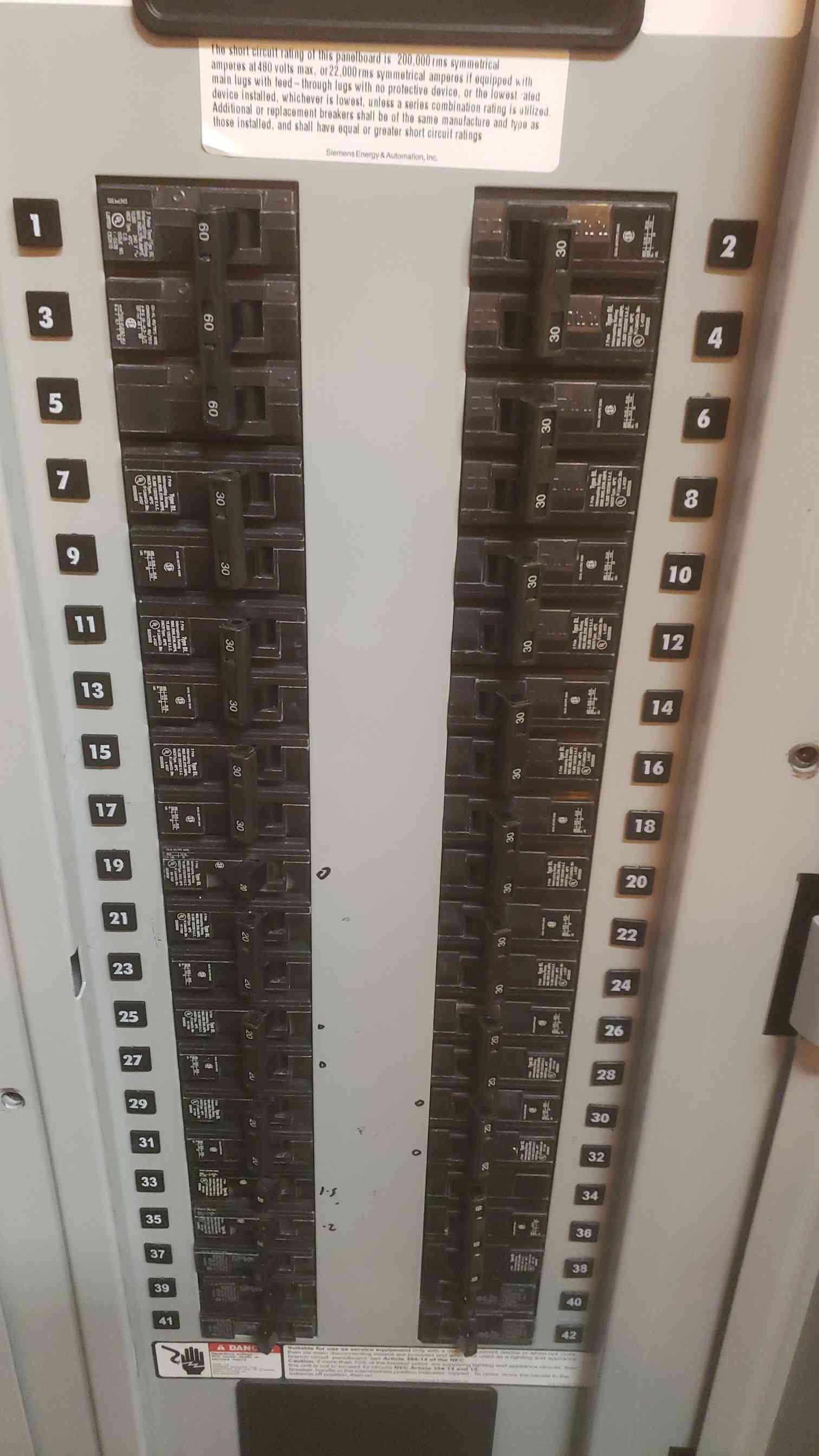

8x Siemens 20A single breakers
5x Siemens 20A double breakers
9x Siemens 30A double breakers
1x Siemens 60A triple breaker
Manufacturer: Siemens

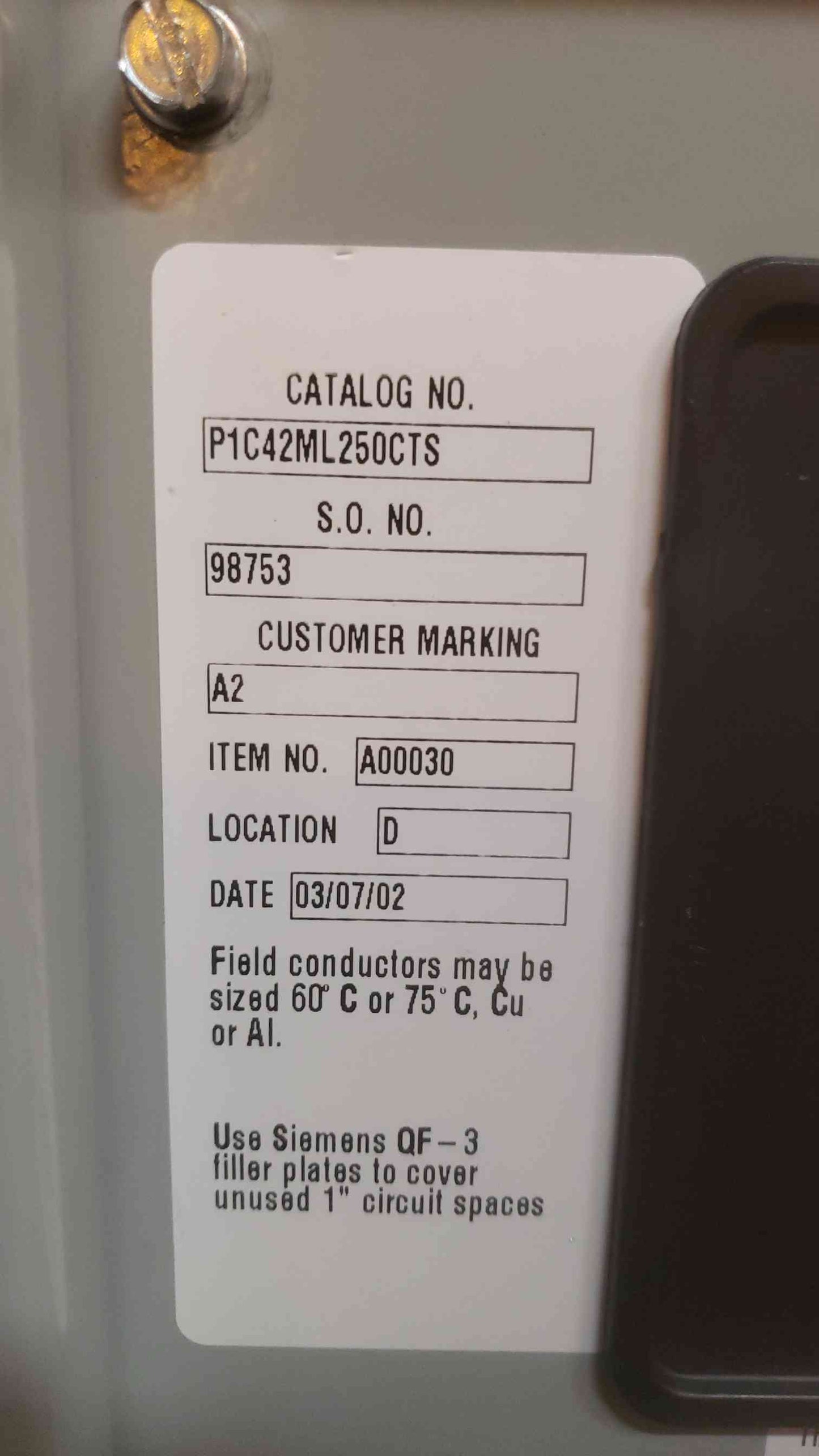

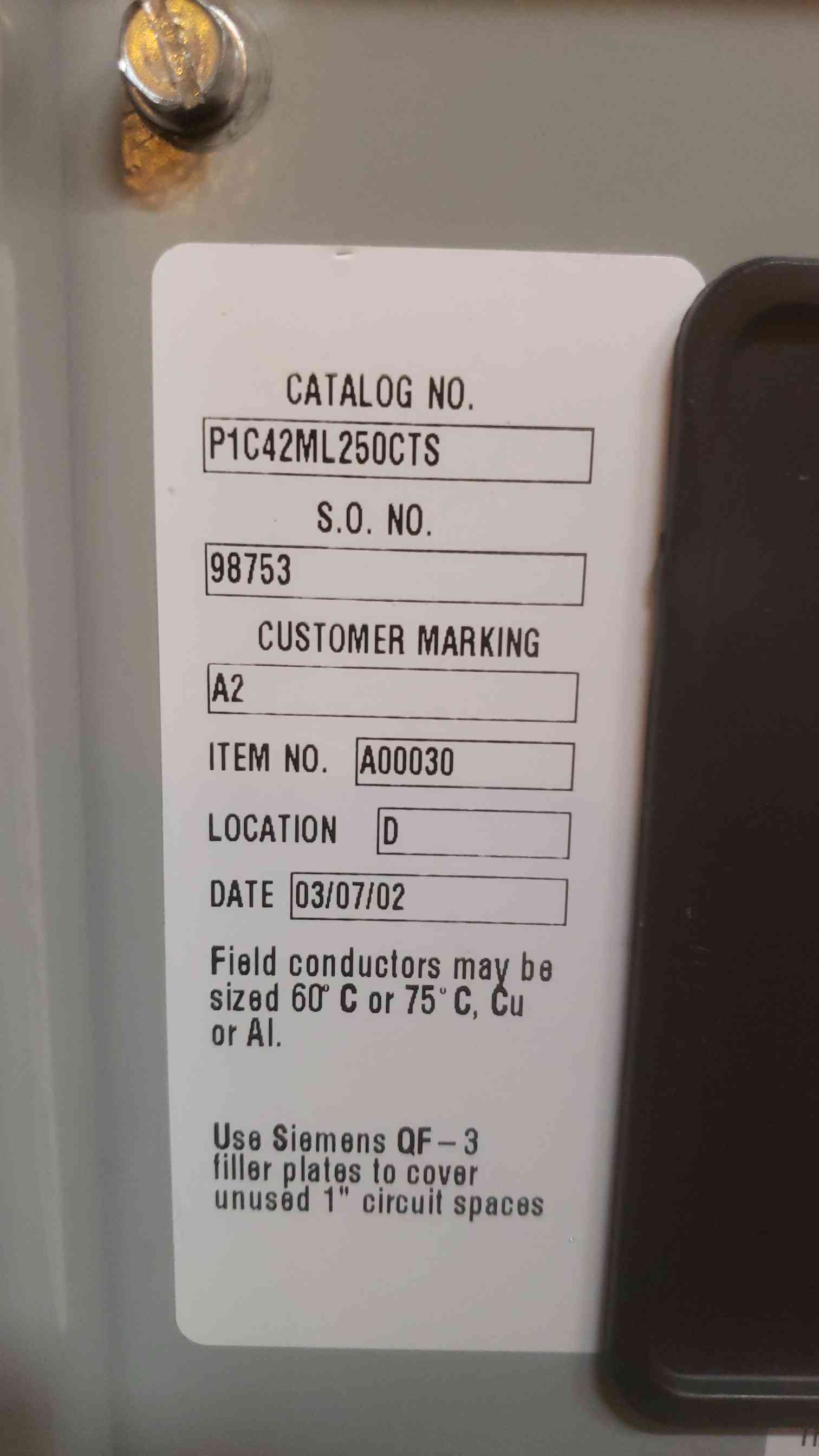

Catalog No.: P1C42ML250CTS
S.O. No.: 98753
Item No.: A00030
Location: D
Date of Manufacture: March 7, 2002

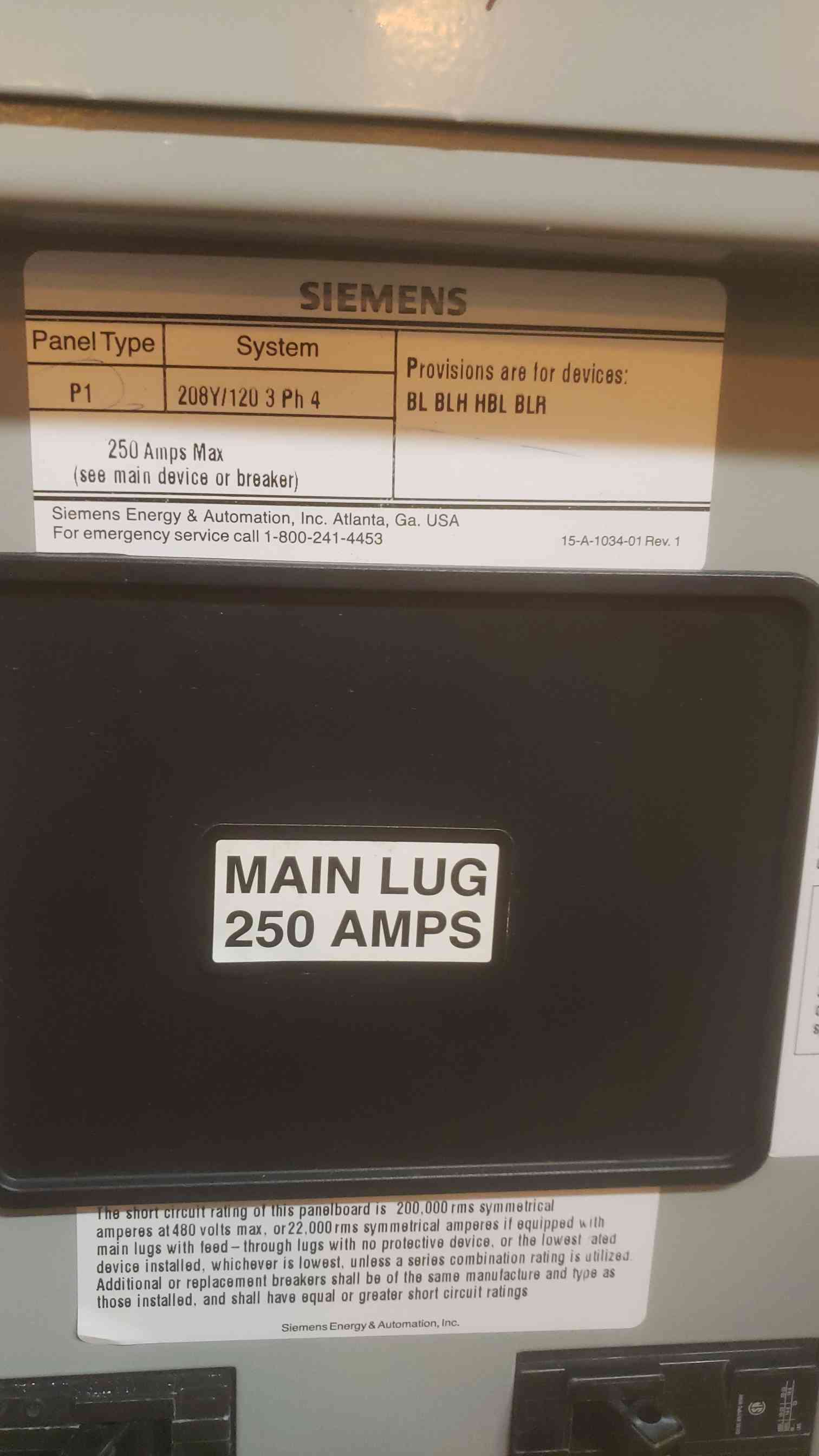

Panel Type: P1
System Voltage: 208Y/120V, 3 Phase, 4 Wire
Main Lug Rating: 250 Amps Max
Short Circuit Rating: 200,000 RMS symmetrical amperes at 480V max, or 22,000 RMS symmetrical amperes if equipped with main lugs with feed-through lugs with no protective device, or the lowest series combination rating is utilized.

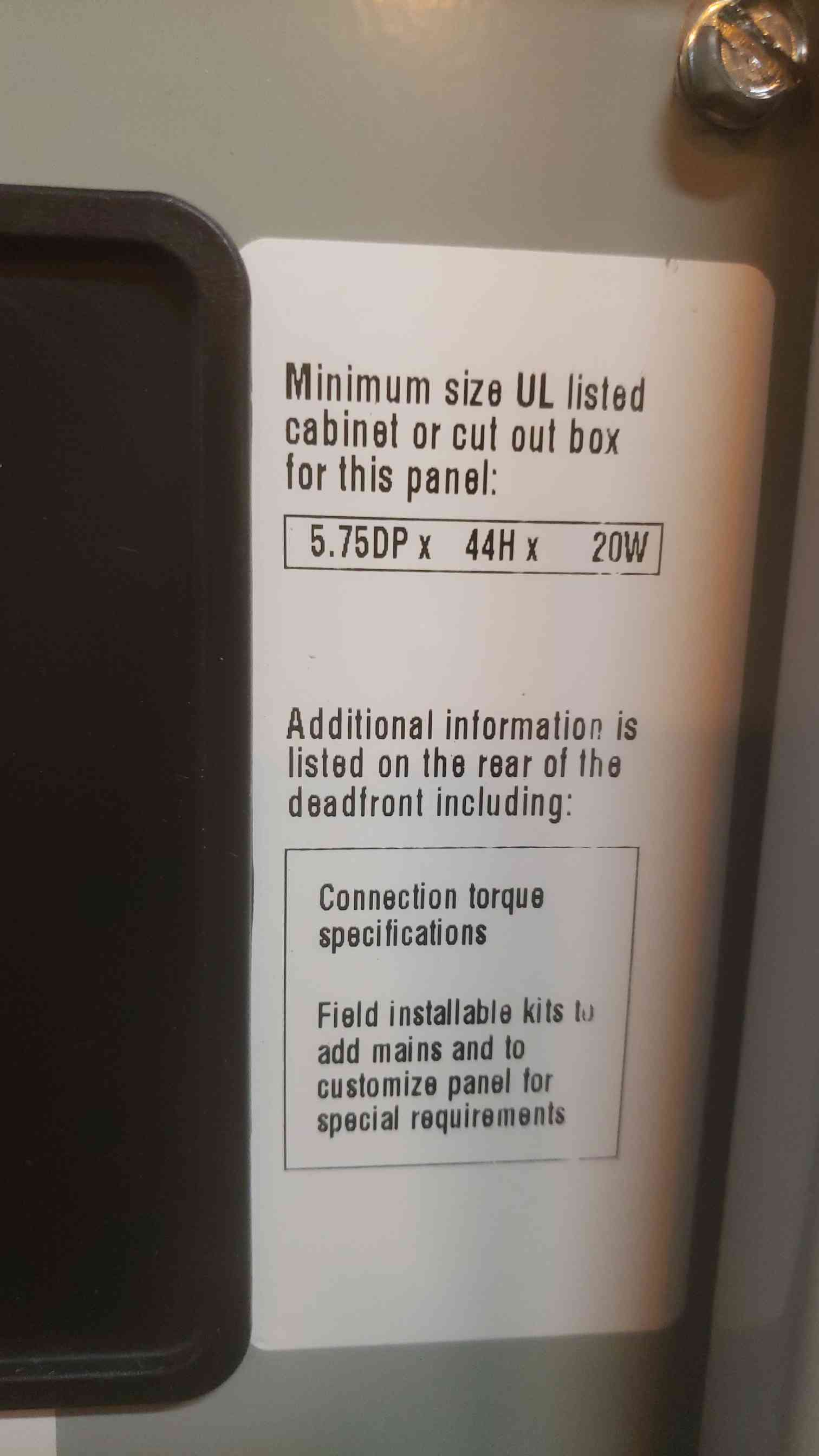

Minimum Cabinet/Cut Out Box Size: 5.75" Depth x 44" Height x 20" Width
Field Conductors: May be sized 60°C or 75°C, Copper or Aluminum.
Filler Plates: Use Siemens QF-3 filler plates to cover unused 1" circuit spaces.
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
