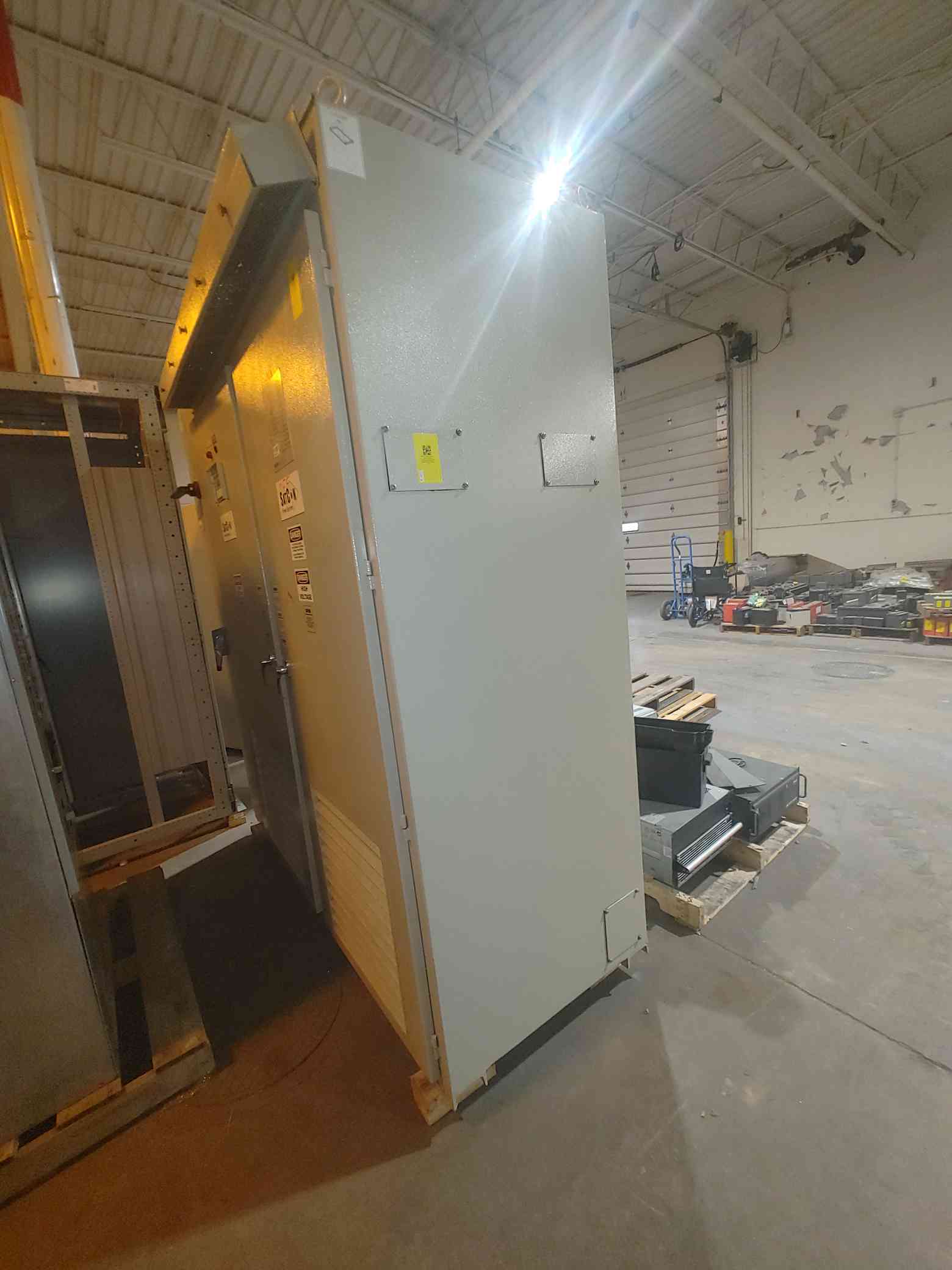

SatCon Power Systems Utility Interactive Solar Cell Inverter AE-225-60-PV-A

SatCon Power Systems Utility Interactive Solar Cell Inverter, Model AE-225-60-PV-A

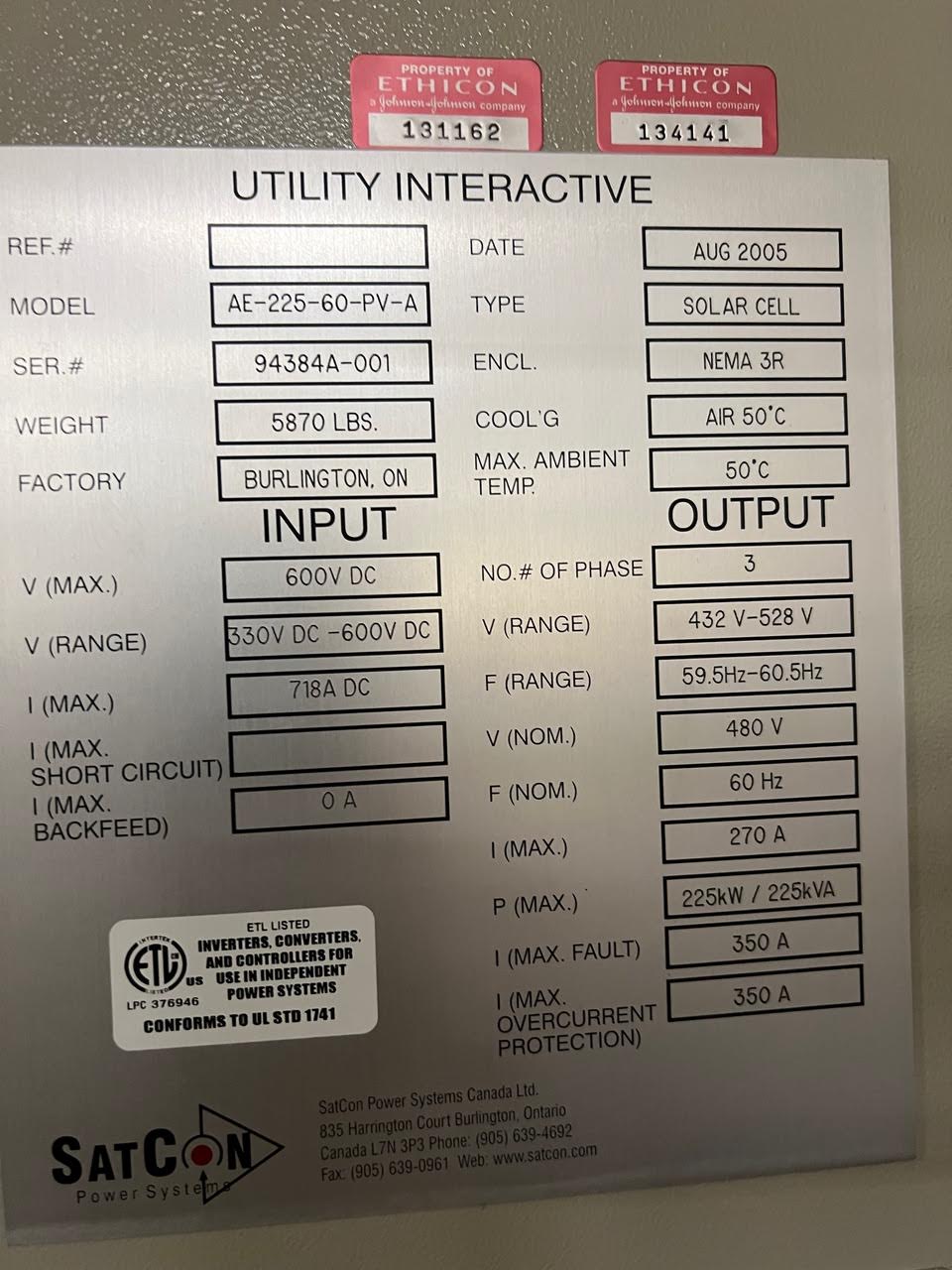

Model: AE-225-60-PV-A
Type: Solar Cell
Date of Manufacture: August 2005
Weight: 5870 LBS. (a very heavy piece of equipment)
Factory: Burlington, ON (Burlington, Ontario, Canada)
Enclosure: NEMA 3R (suitable for outdoor use with protection against rain, sleet, snow, and external ice formation)
Cooling: Air 50°C Max. Ambient Temp.
Input (DC from solar panels):
V (Max.): 600 VDC
V (Range): 330 VDC - 600 VDC
I (Max.): 718 ADC
I (Max. Short Circuit): 0 A (This seems unusual for a short circuit current, might indicate internal protection or a specific measurement point).
I (Max. Backfeed): 0 A
Output (AC to the grid):
No. of Phase: 3
V (Range): 432 V - 528 V
F (Range): 59.5 Hz - 60.5 Hz
V (Nom.): 480 V
F (Nom.): 60 Hz
I (Max.): 270 A
P (Max.): 225 kW / 225 kVA (This is the rated power output)
I (Max. Fault): 350 A
I (Max. Overcurrent Protection): 350 A
