Westinghouse
Category: Breakers

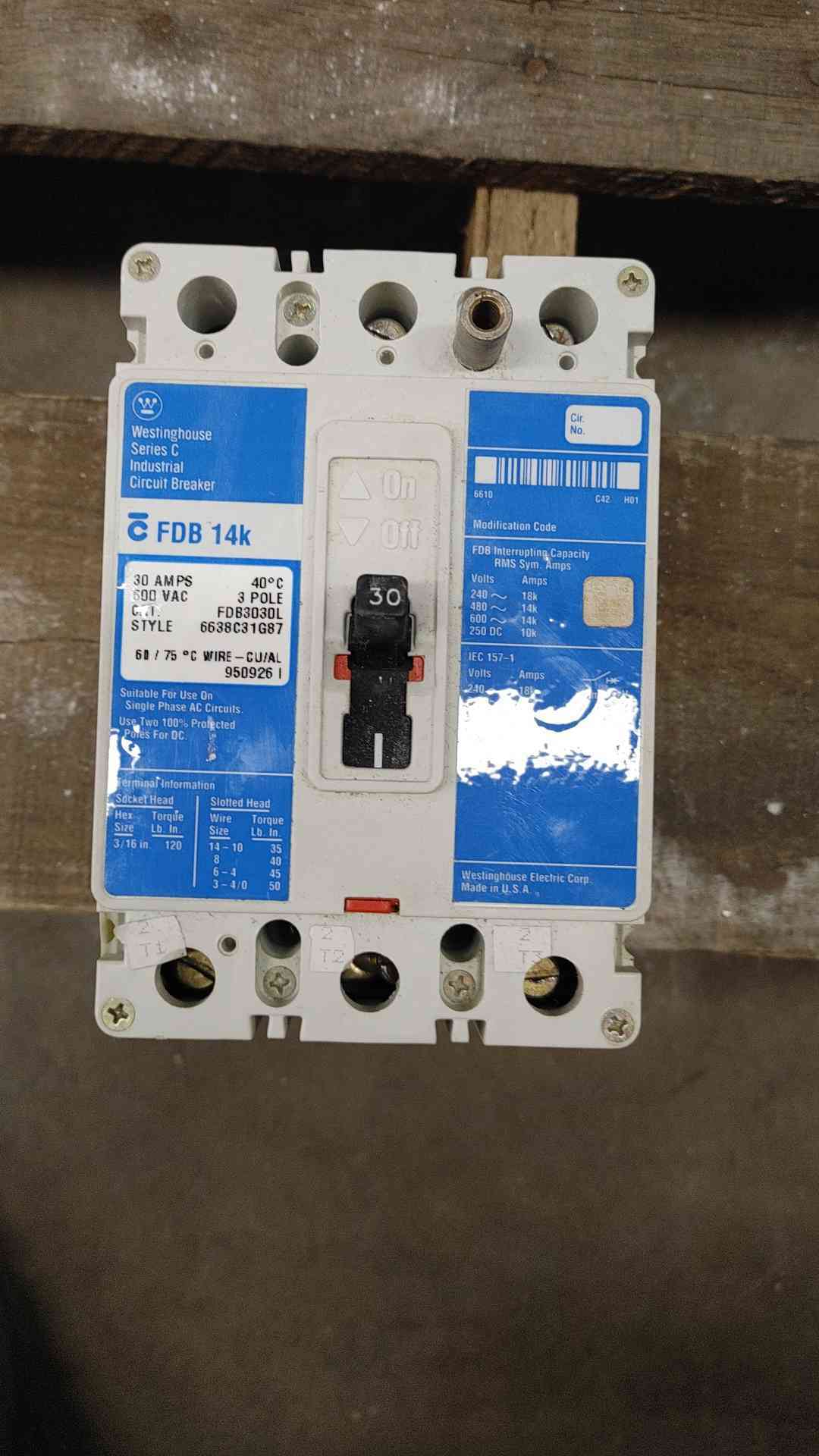

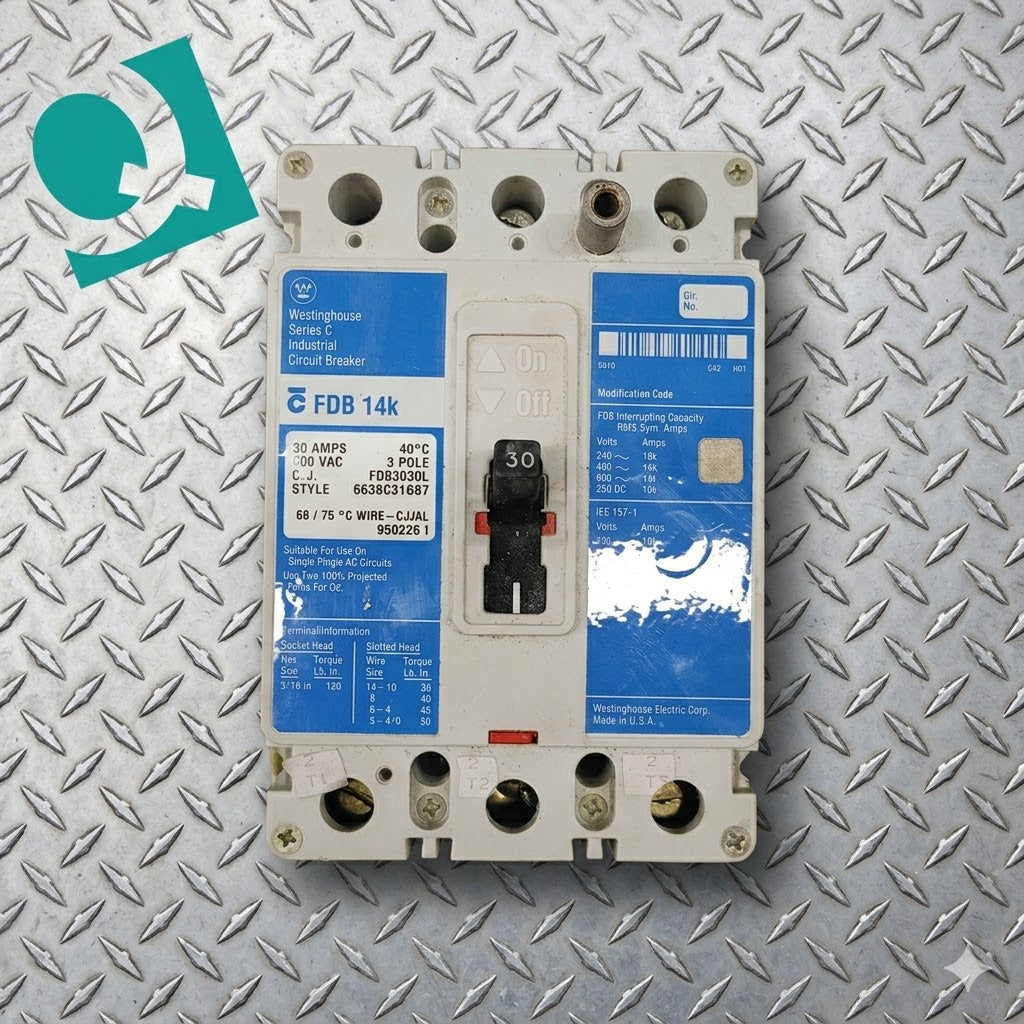

Westinghouse Series C Industrial Breaker 30A 3POLES 600V (SKU: 110229)
Westinghouse Series C Industrial Breaker 30A 3POLES 600V (SKU: 110229)
SKU:110229
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$250.00 USD
Unit price
/
per
Low stock: 1 left
Manufacturer: Westinghouse Electric Corp. (Now part of Eaton)
Model: FDB 14k, Series C
Catalog Number: FDB3030L
Amperage: 30 Amps
Voltage: Rated for up to 600 VAC
Poles: 3-Pole

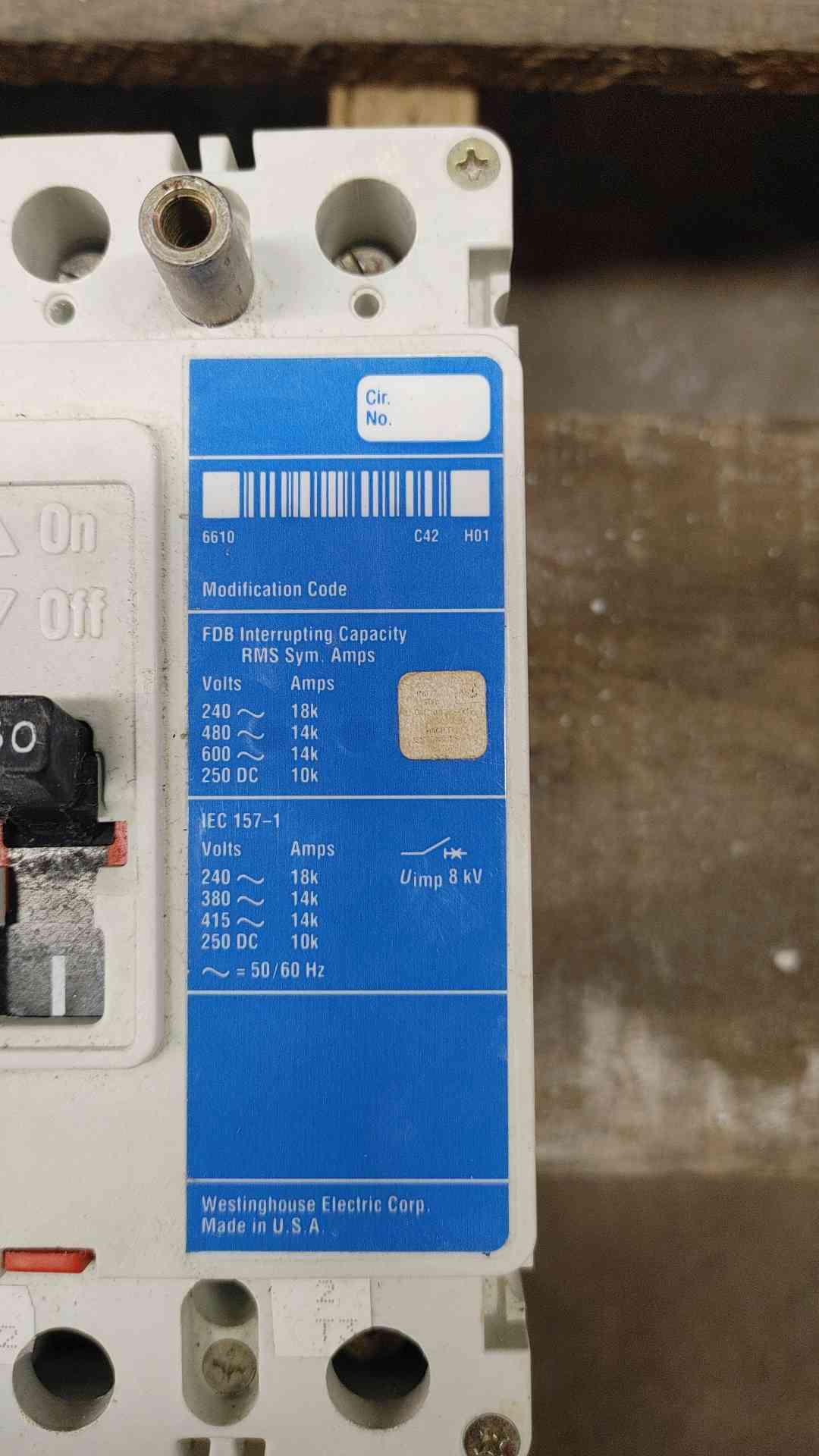

Interrupting Capacity: The "14k" in the model name signifies an interrupting capacity of 14,000 amps at 480 VAC. The label provides detailed interrupting ratings at various voltages:
18k Amps at 240V
14k Amps at 480V
14k Amps at 600V
10k Amps at 250V DC
Suitability: It is suitable for use on single-phase AC circuits and, by using two 100% protected poles, for DC applications.

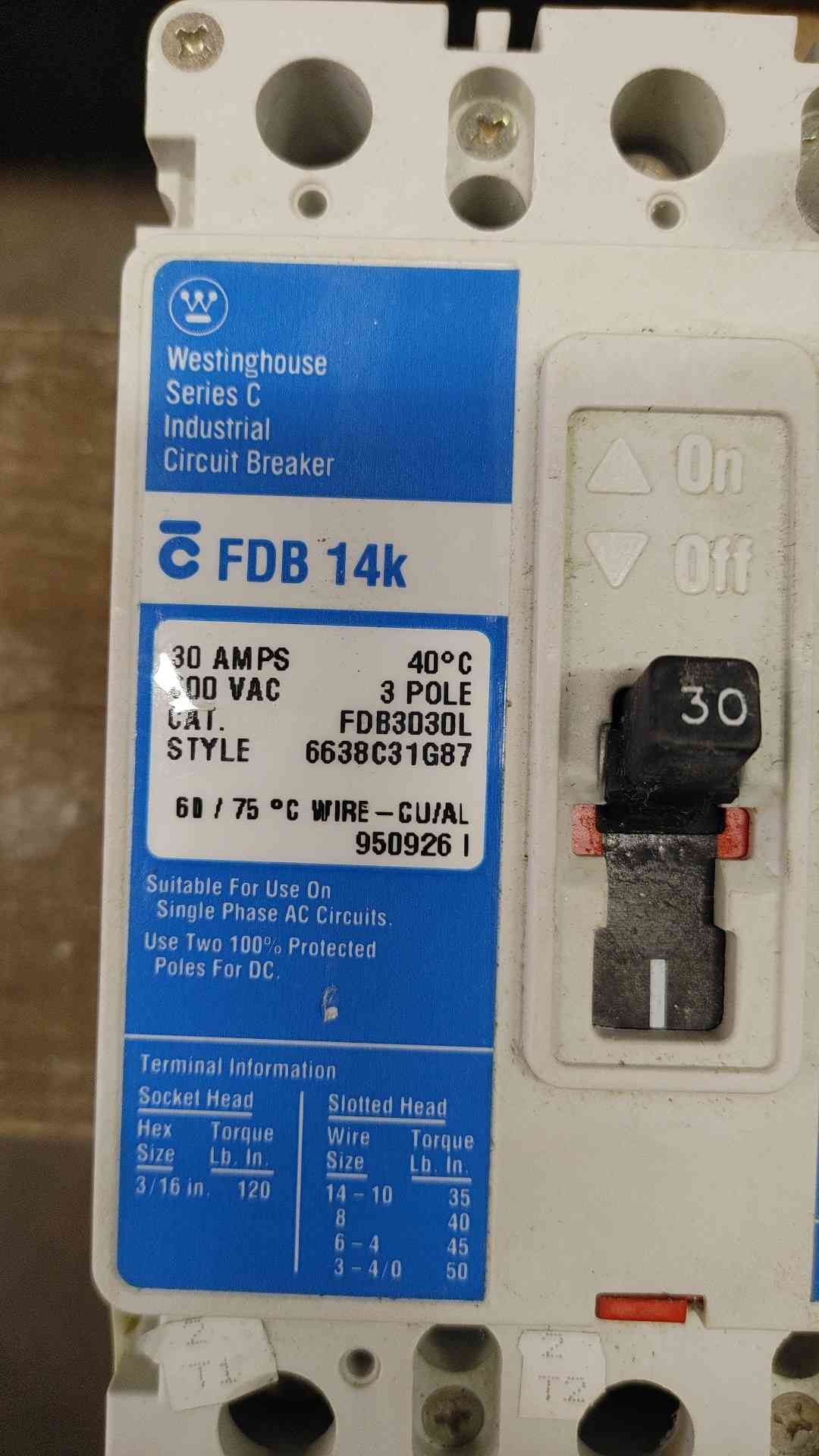

Terminals: The breaker is designed for use with copper or aluminum wire (CU/AL) rated for 60/75°C. The terminal information indicates torque specifications for both hex and slotted head connections.
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
Model: FDB 14k, Series C
Catalog Number: FDB3030L
Amperage: 30 Amps
Voltage: Rated for up to 600 VAC
Poles: 3-Pole
Interrupting Capacity: The "14k" in the model name signifies an interrupting capacity of 14,000 amps at 480 VAC. The label provides detailed interrupting ratings at various voltages:
18k Amps at 240V
14k Amps at 480V
14k Amps at 600V
10k Amps at 250V DC
Suitability: It is suitable for use on single-phase AC circuits and, by using two 100% protected poles, for DC applications.
Terminals: The breaker is designed for use with copper or aluminum wire (CU/AL) rated for 60/75°C. The terminal information indicates torque specifications for both hex and slotted head connections.
