Quantum Technology Equipment
Category: CRAC Units
5 Ton Liebert BU067A DAMEI159S CRAC 3PH 460V Upflow 2011
5 Ton Liebert BU067A DAMEI159S CRAC 3PH 460V Upflow 2011
SKU:110332
Regular price
$3,500.00 USD
Regular price
Sale price
$3,500.00 USD
Unit price
/
per
Regular price
Regular price
Sale price
$3,500.00 USD
Unit price
/
per
Low stock: 1 left
Manufacturer: Liebert (a brand now part of Vertiv)

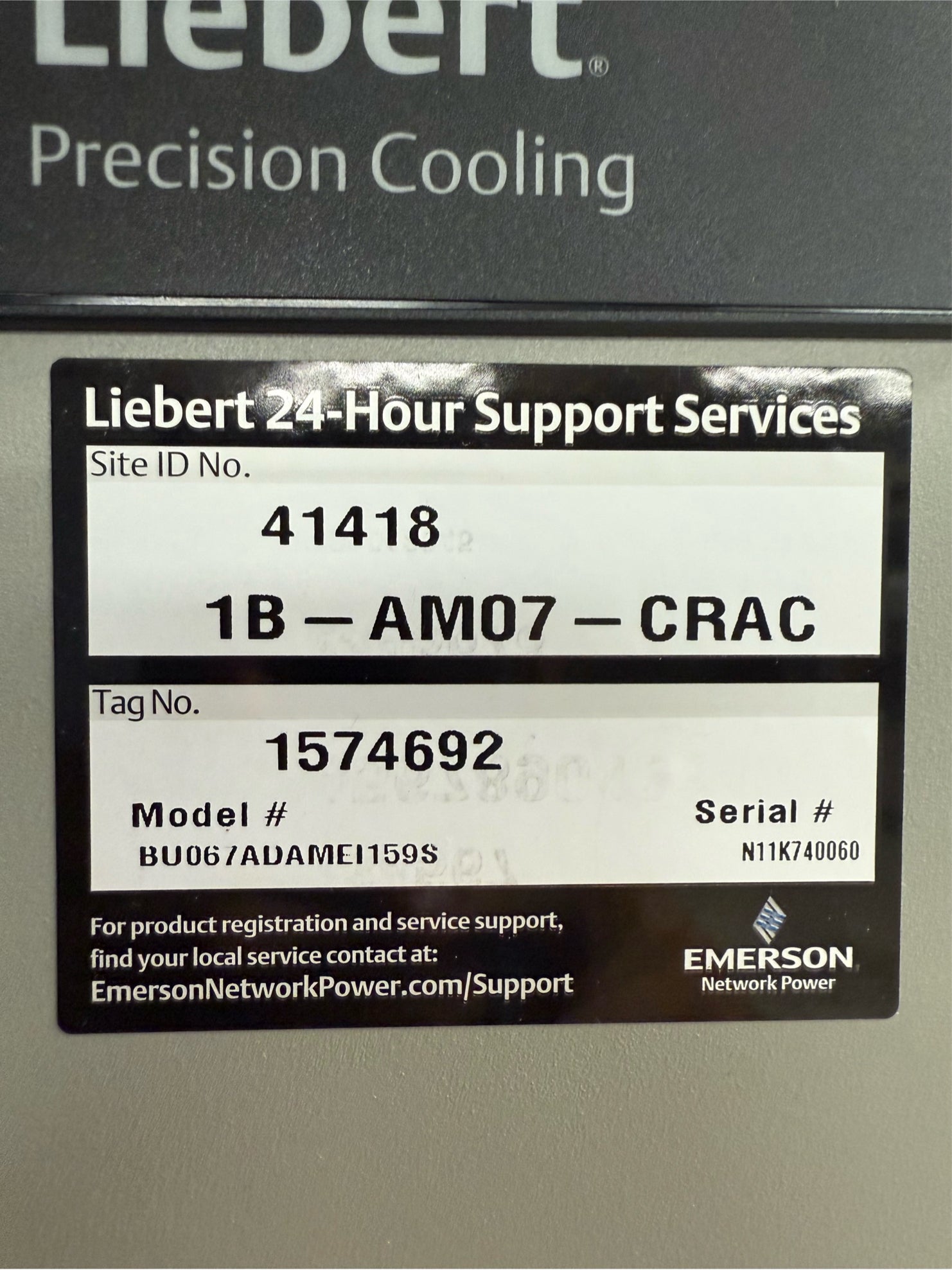

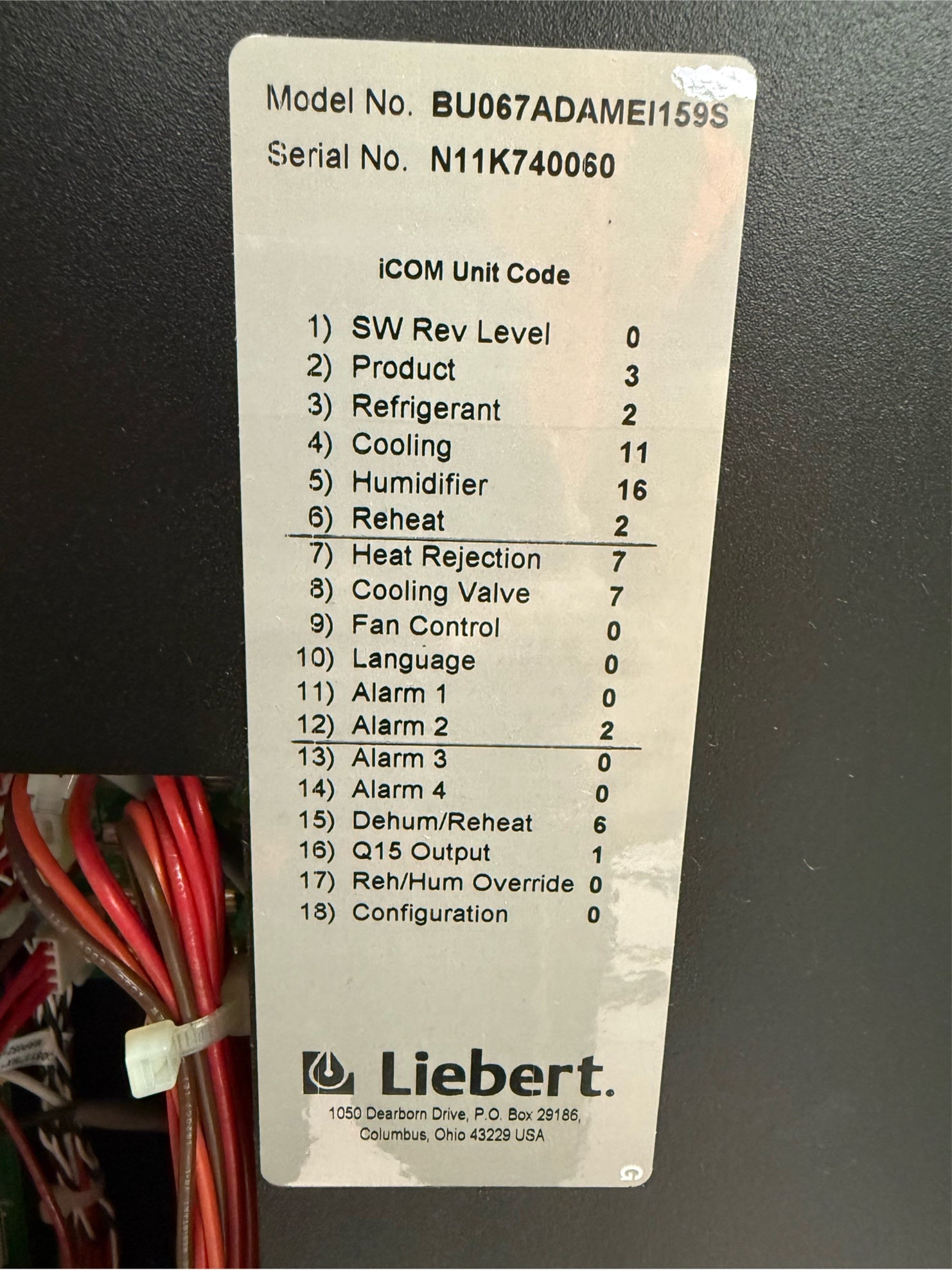

Model No: BU067ANAMF1159S
Serial No: N11K740060
Date Code: K-2011, which indicates the unit was likely manufactured in 2011.

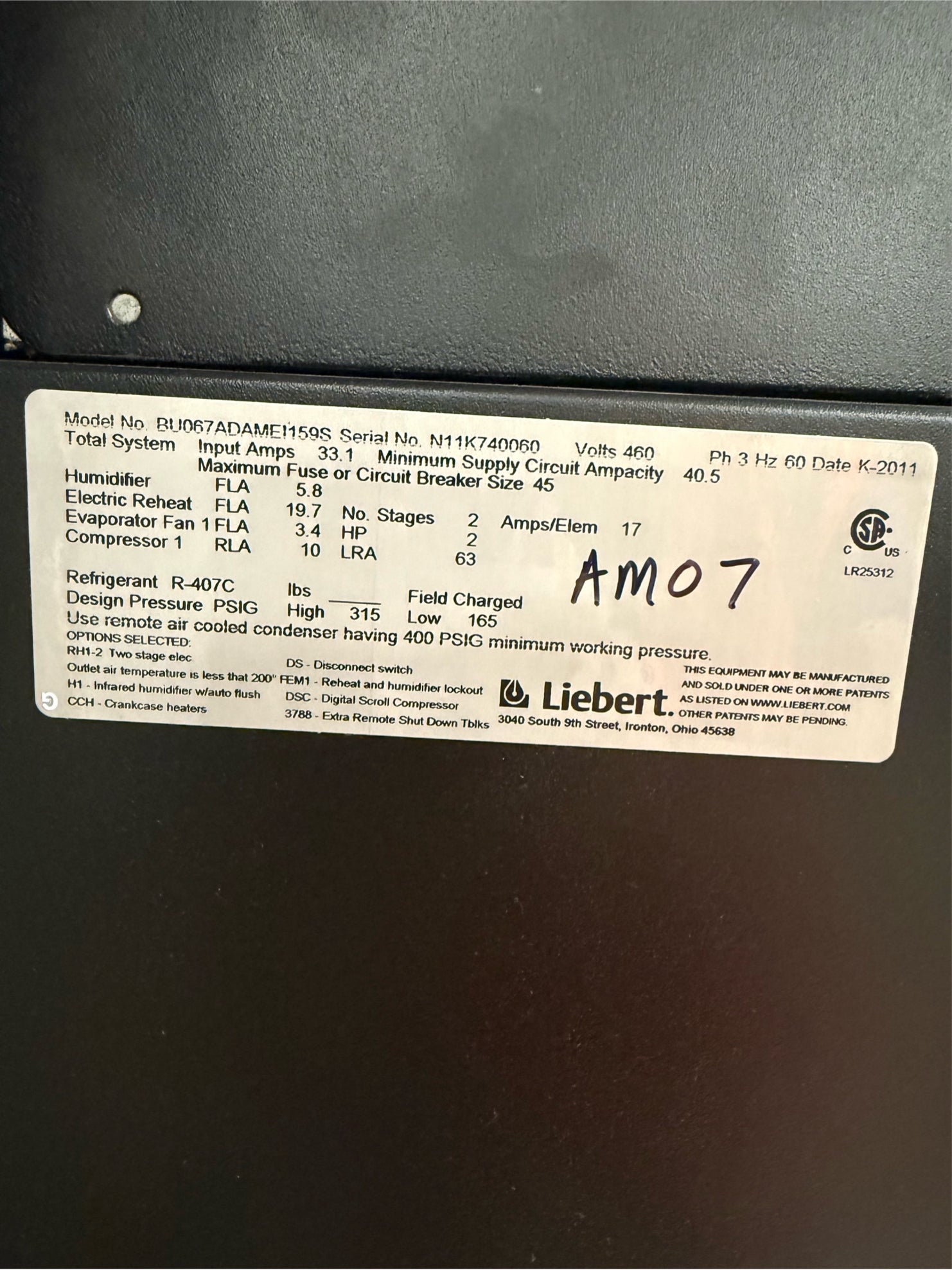

System Electrical Specifications:
Voltage: 460 Volts
Phase: 3-Phase
Frequency: 60 Hz
Total System Input Amps: 33.1 A
Minimum Supply Circuit Ampacity: 40.5 A
Maximum Fuse or Circuit Breaker Size: 45 A
Component Details:
Compressor: The unit has one compressor with a Rated Load Amperage (RLA) of 10 A and a Locked Rotor Amperage (LRA) of 63 A. It's a Digital Scroll Compressor (DSC).
Evaporator Fan: The indoor fan motor is 2 horsepower (HP) and draws 3.4 Full Load Amps (FLA).
Electric Reheat: The unit has a 2-stage electric heater that draws 19.4 FLA. This is used for fine temperature control and dehumidification cycles.
Humidifier: An infrared humidifier is included, which draws 5.8 FLA.
Refrigeration System:
Refrigerant: The system uses R-407C refrigerant.
Charge: The label states "Field Charged," meaning the correct amount of refrigerant is added during installation on-site, not at the factory.
Design Pressures: High side is 315 PSIG, and the low side is 165 PSIG.
Condenser: The plate specifies that this indoor unit must be paired with a "remote air cooled condenser having 400 PSIG minimum working pressure." This confirms it is part of a split system, with an outdoor unit that is not pictured.
Selected Options:
The unit came from the factory with several options installed, including:
RH1-2: Two-stage electric reheat.
HU-4: Infrared humidifier with auto flush.
CCH: Crankcase heater (protects the compressor).
D1: Disconnect switch.
DSC: Digital Scroll Compressor.
*Handling times for freight shipments average 5 days, but may vary depending on size, weight, location, and current trucking conditions. This does not include shipping time.*
Please be aware that item descriptions are provided as-is without any warranties or guarantees of accuracy. We strongly recommend using this content as a starting point for further research and consultation with relevant experts or authorities. We disclaim any liability for damages or losses resulting from the use or reliance on this content.
We can ship international freight. Please contact us if you have any questions or issues checking out.
IMPORTANT: The sale includes only items in the picture. No other accessories not in the picture are included. If you feel something is missing please reach out to us before buying. No returns will be accepted due to items not in the picture. Thanks for your understanding.
The equipment is used, as such it may have some blemishes, light surface scratches not affecting operation. If you need more details about your particular equipment, please email with questions.
Generators do not ship with batteries due to DOT regulations.
Datacenter and computer equipment we sell does not include hard drives.
