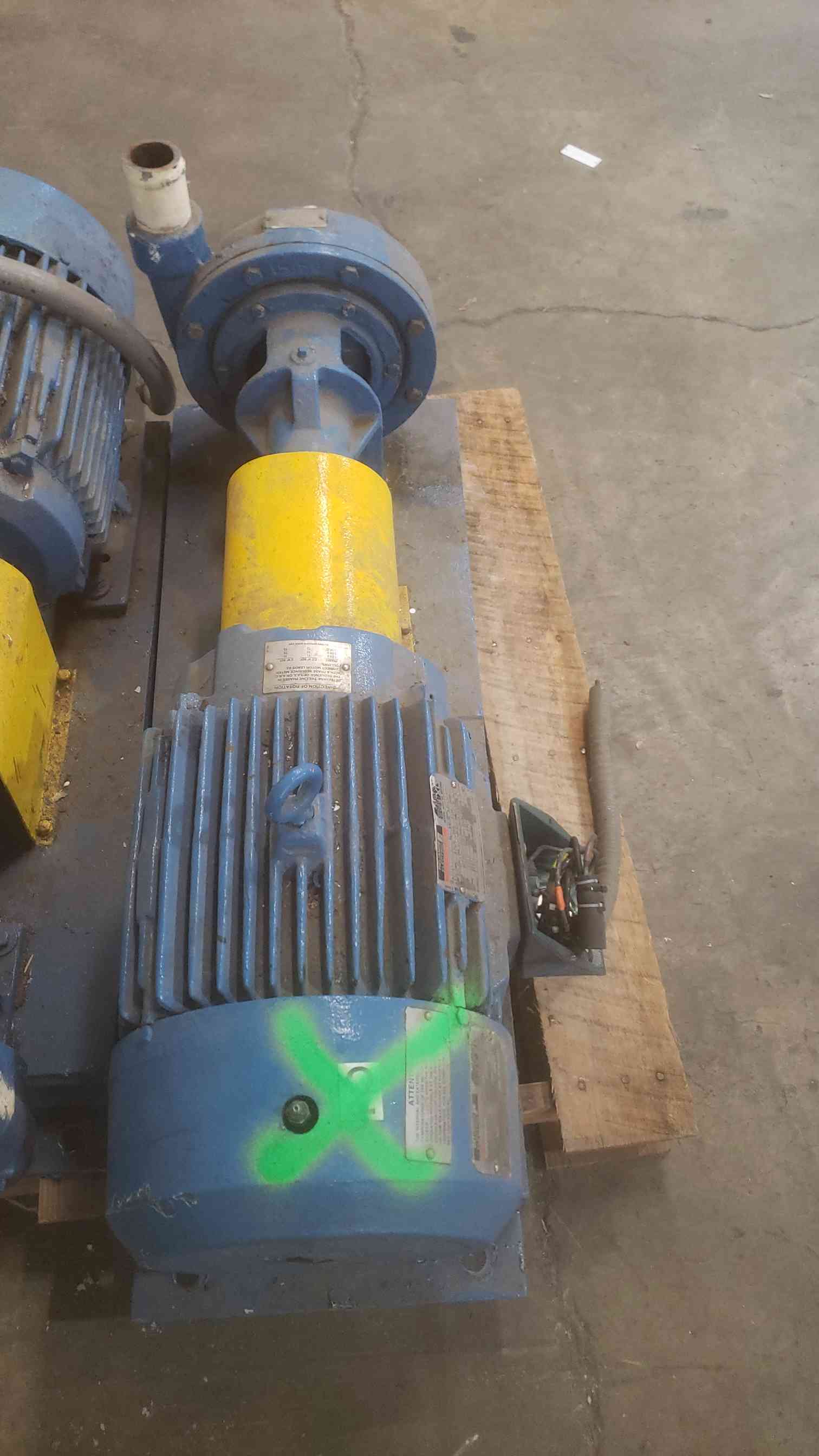

20HP RELIANCE Motor Paco Pump Package 841XL 460V, 22.3A, 3PH Severe Duty AC

20HP RELIANCE ELECTRIC 841XL 460V, 22.3A, 3PH Severe Duty AC Motor and Paco Pump

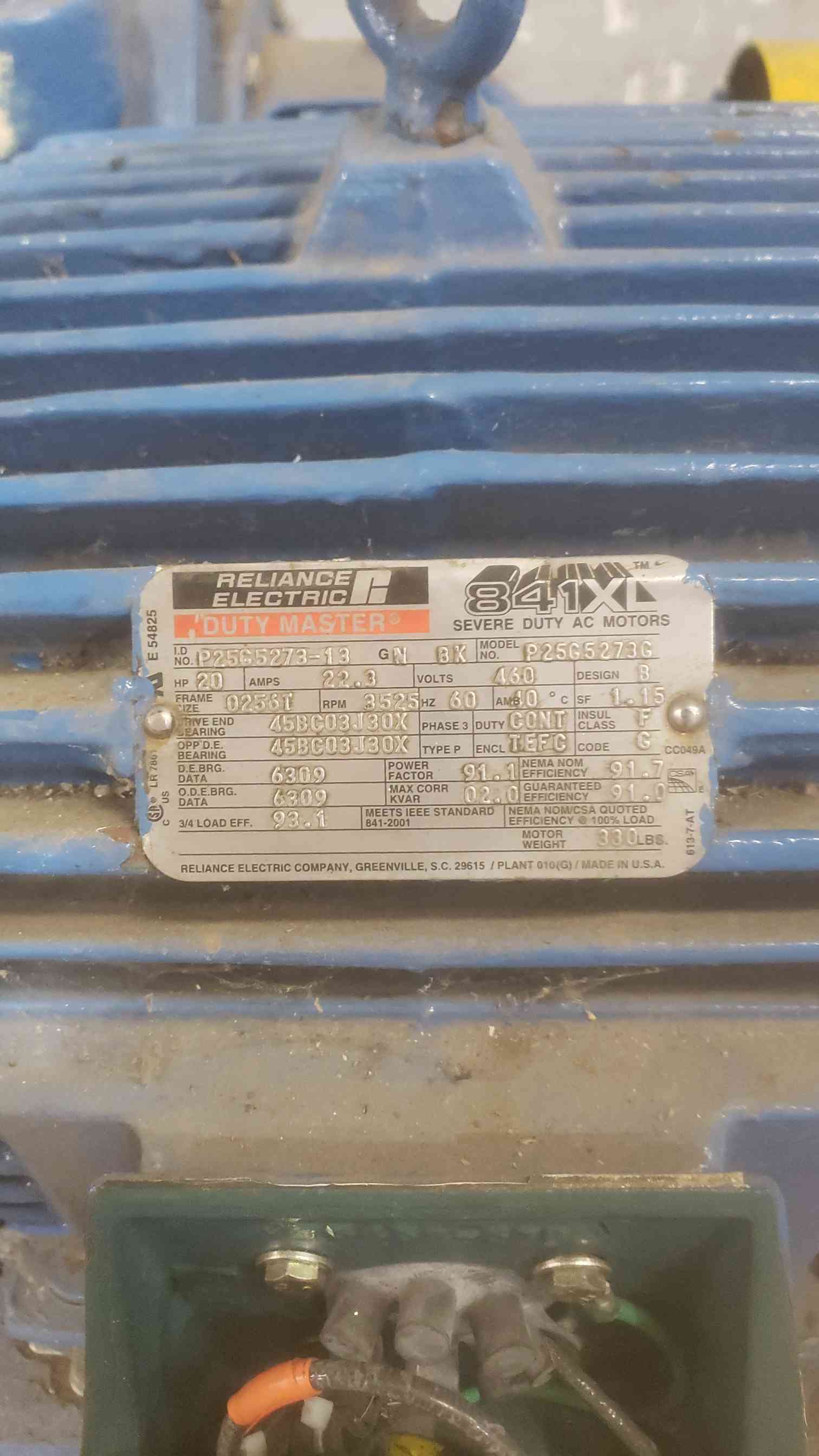

Model: P25G5273C
Horsepower: 20 HP
RPM: 3555
Voltage: 460V (3-Phase)
Frame: D256T
Enclosure: TEFC (Totally Enclosed Fan Cooled), which protects it from dust and moisture.
The Pump: High-Performance Fluid Mover

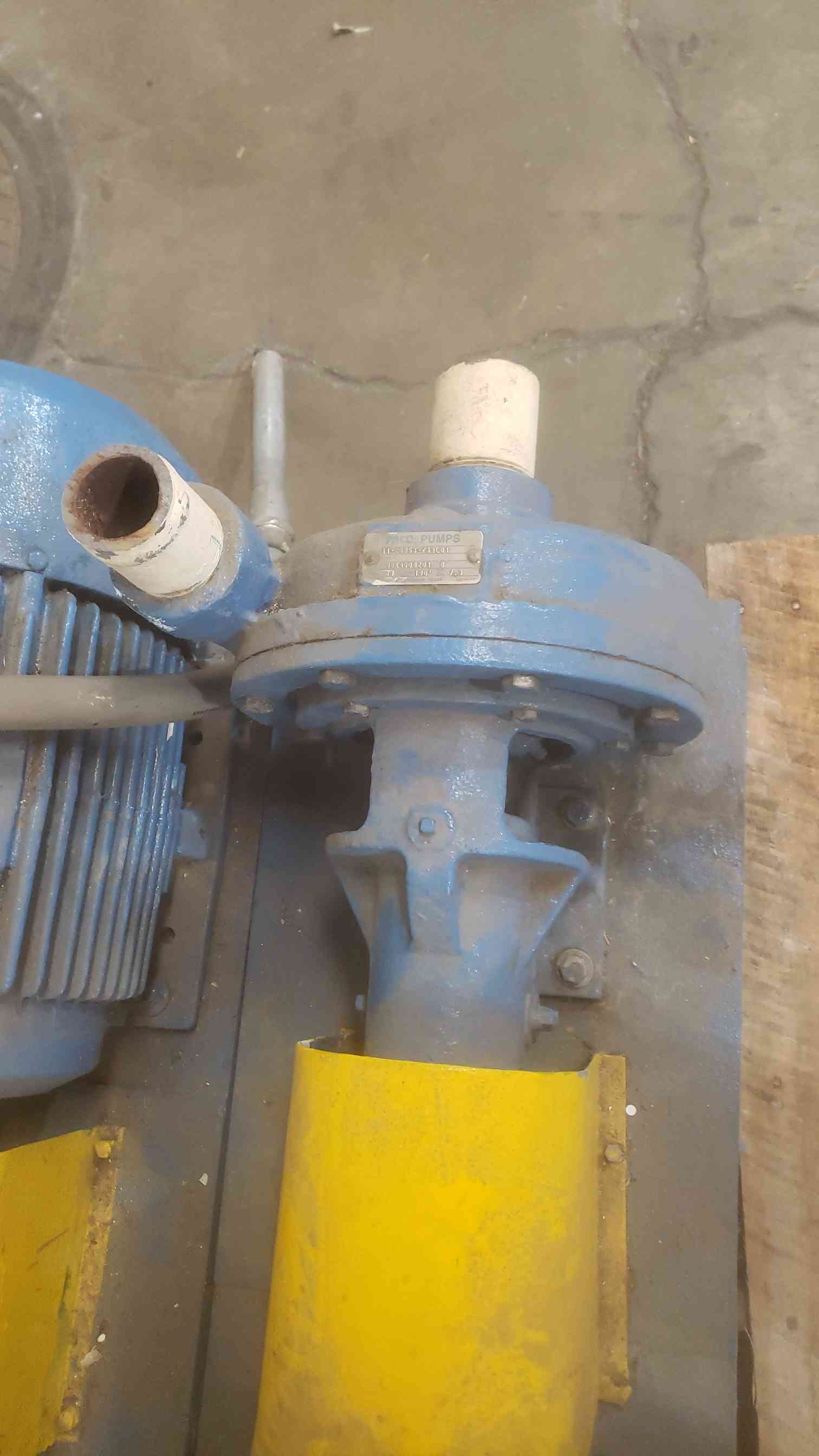

Attached to the motor is a Paco Centrifugal Pump. Paco pumps are well-regarded in the industry for use in HVAC systems, water treatment, and other industrial fluid handling.

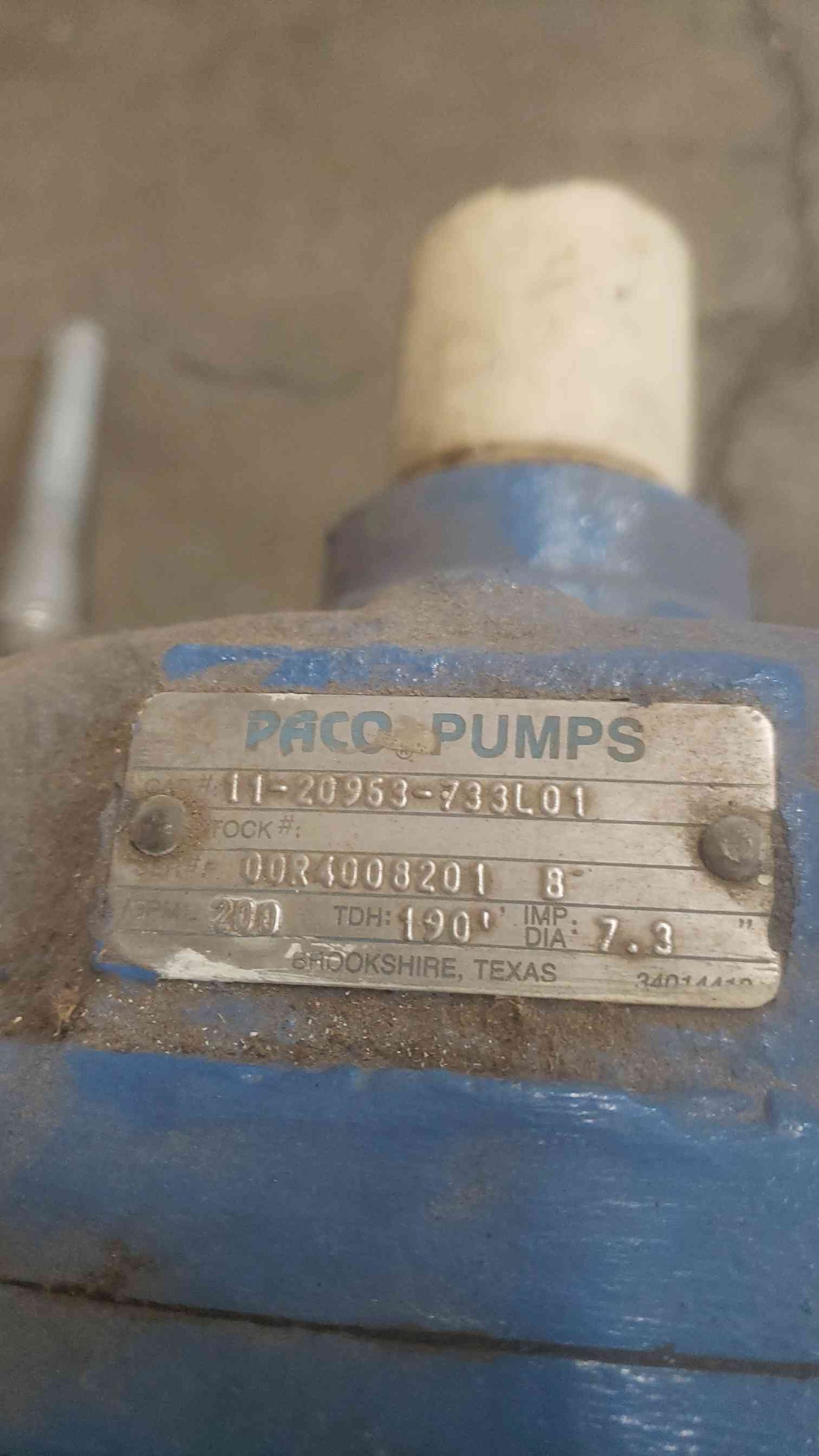

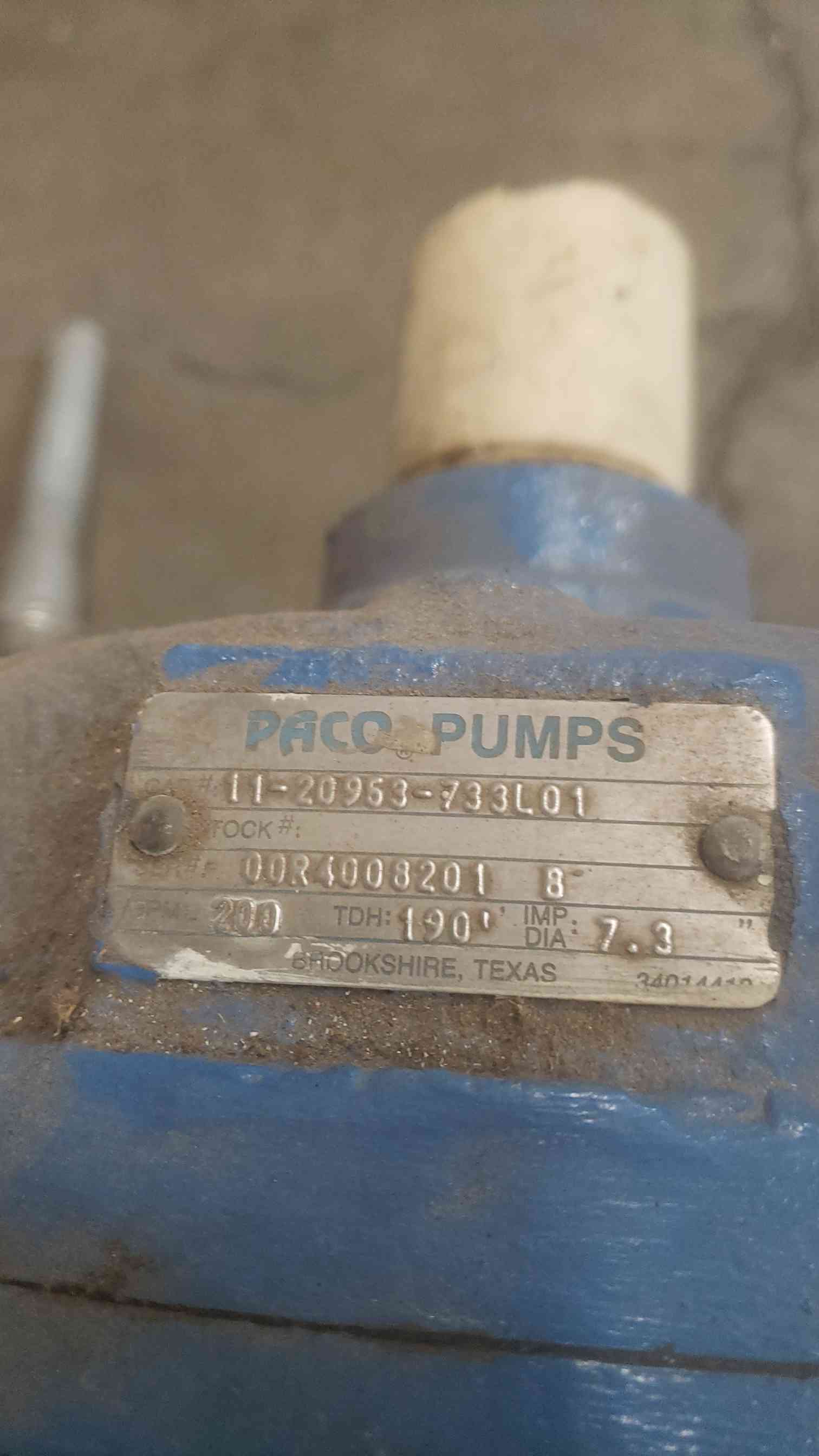

Key specifications from the nameplate include:
Model: 11-20953-733L01
Flow Rate: 200 Gallons Per Minute (GPM)
Total Dynamic Head (TDH): 190 feet
Impeller Diameter: 7.3 inches

This combination of a high-speed, powerful motor and a high-pressure pump is typically used for applications requiring significant water or fluid movement, such as large-scale irrigation, industrial processing, or commercial building water circulation.
